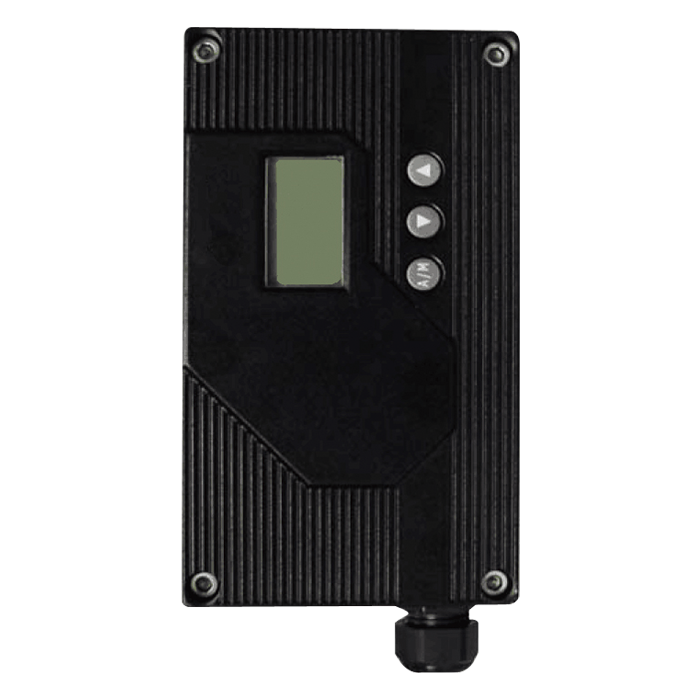

Intelligent EP Valve Positioner
P01
|
GENERAL INFORMATION Series P01 Intelligent EP valve positioner is suitable for both linear and rotary positioning of valve. It changes the current signal to air pressure to control the pneumatic actuator, so as to control the opening of the valve. Intelligent adjustment makes the setting easy and convenient.
FEATURES • No vibration
• Different options available as choice
• Acting fast and accurately
• Adjustment process is simple and convenient

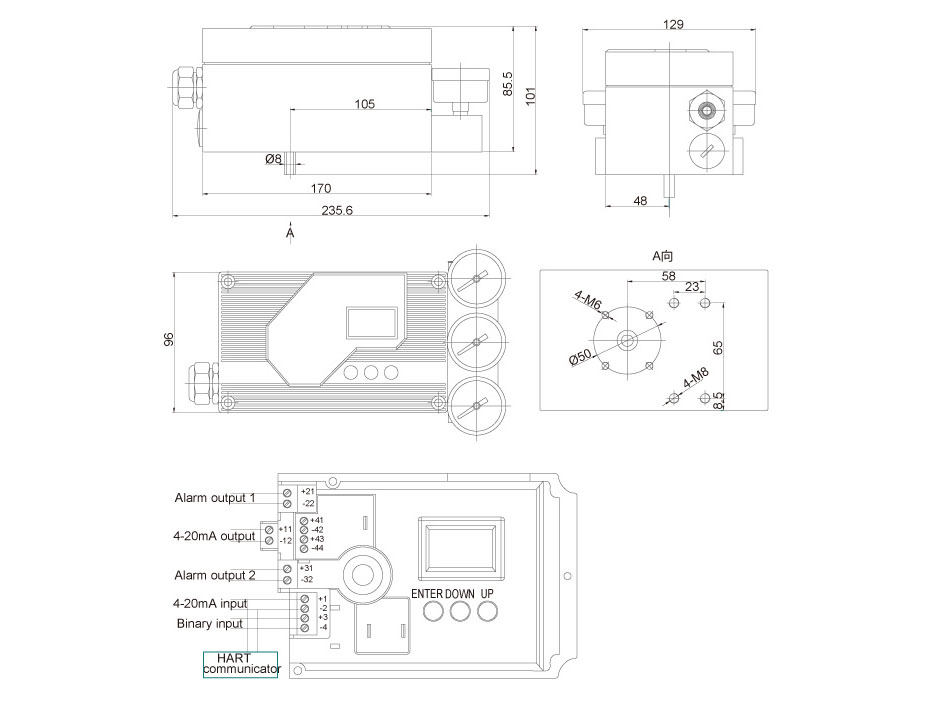

| Optional specifications | | Item | Options | | Type of the positioner | □ Linear: 10～100mm | | □ R: Rotary, 30°～120° | | Type of acting | □ D: Double acting | | □ S: Single acting | | Explosion proof | □ n: No explosion proof | | □ i: Intrinsicial safe(Exia II CT6) | | □ d: Flameproof(Exd II CT6) | | Technical data | | Item | Data | | Input signal | 4～20mA(2 wire), minimum 3.6mA | | Supply pressure | 0.14Mpa～0.7Mpa(1.4Bar～7Bar) | | Stroke | Linear: 10～100mm, Rotary: 30°～120° | | Air connection | 1/4BSPP, 1/4NPT | | Conduit | M20-1.5, 1/2BSPP, 1/2NPT | | Weather proof | IP65 | | Explosion proof | Exia II CT4-6, or Exd II CT6 | | Ambient temperature | -20℃～70℃ | | Linearity | 0.5%F.S. | | Hysteresis | ±1%F.S. | | Repeatability | 0.2%F.S. | | Air consumption | ＜36L/H | | Vibration effect | 2G | | Dimension | 170x96x96mm | | Material | Aluminum alloy with polyester powder | | Weight | 2.0Kg |
