Thin Wafer Swing Check Valves
C14
|

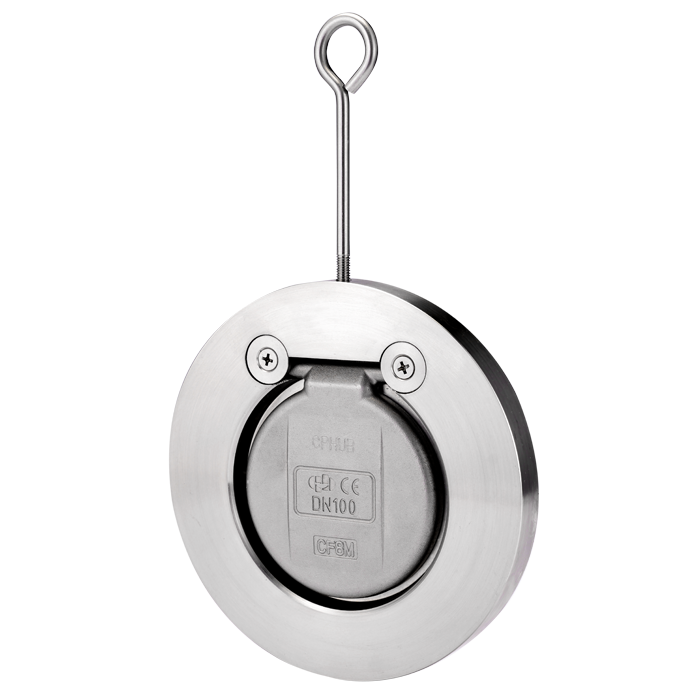

GENERAL INFORMATION Series C14 thin wafer swing check valve opens when the opening force exceeds the closing force. The opening force depends on the pressure or the flow volume and the closing force on the closing weight, the installation position and the size of the check valve. The thin wafer design drastically reduces the weight in comparison with conventional valves.
They have been widely used in Marine and offshore industry, Petrochemical industry, Pharmaceutical industry, Heating and cooling, Ventilation, Fir protection systems, Water industry, Beer and beverage industry, Nuclear power industry. FEATURES • Thin wafer short face-to-face dimension• Self-centering
• Low pressure drops
• Easy to install and maintenance
• Dual safe retainer keeping the disc
| Connection | Wafer | | Nominal diameter | DN40-DN1000 | | Standard pressure rating | PN16 | | Maximum pressure rating | PN40 for DN40-DN100, PN20 for DN125-DN600 | | Flange accommodation | PN10, PN16, PN25, PN40; ANSI CLASS150 | | Face to face | Industrial standard | | Temperature range | -20°C to +85°C for NBR seat | | -20°C to +130°C for EPDM seat | | -20°C to +180°C for FPM seat | | -29°C to +400°C for metal to metal seat | | Coating | Galvanization for steel |

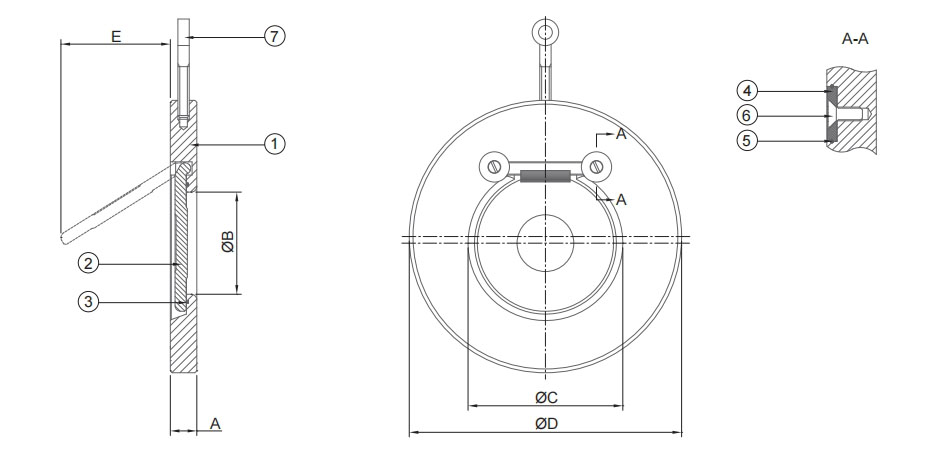

| No. | Part name | Material | | 1 | Body | Galvanized steel,SS316L | | 2 | Disc | CF8,CF8M | | 3 | Seat | NBR, EPDM, FPM, Metal to metal | | 4 | Washers | SS316L | | 5 | Retainer rings | SS316L | | 6 | Screws | SS316L | | 7 | Eye bolt | SS304 |
SIZE | A | B | C | D | E | WT(kg) | | DN | INCH | PN10 | PN16 | PN25 | PN40 | CLASS150 | | 25 | 1 | 14 | 13 | 29 | 73 | 73 | 73 | 73 | 66.7 | 14 | 0.5 | | 32 | 11/4" | 14 | 13 | 29 | 84 | 84 | 84 | 84 | 76.2 | 16 | 0.6 | | 40 | 11/2" | 14 | 22 | 39 | 0 | 94 | 94 | 94 | 85.7 | 25 | 0.9 | | 50 | 2" | 14 | 32 | 48 | 109 | 109 | 109 | 109 | 104.8 | 37 | 1.1 | | 65 | 21/2" | 14 | 40 | 59 | 129 | 129 | 129 | 129 | 123.8 | 50 | 1.5 | | 80 | 3" | 14 | 54 | 76 | 144 | 144 | 144 | 144 | 136.5 | 61 | 1.8 | | 100 | 4" | 18 | 70 | 96 | 164 | 164 | 170 | 170 | 174.6 | 77 | 3.0 | | 125 | 5" | 18 | 92 | 115 | 194 | 194 | 196 | | 196.8 | 94 | 3.4 | | 150 | 6" | 20 | 112 | 138 | 220 | 220 | 226 | | 222.2 | 100 | 5.4 | | 200 | 8" | 22 | 154 | 183 | 275 | 275 | 286 | | 279.4 | 152 | 7.7 | | 250 | 10" | 26 | 200 | 232 | 330 | 330 | 343 | | 339.7 | 180 | 13 | | 300 | 12" | 32 | 240 | 272 | 380 | 386 | 403 | | 409.5 | 215 | 23 | | 350 | 14" | 38 | 269 | 305 | 440 | 446 | 460 | | 450.9 | 245 | 38 | | 400 | 16" | 44 | 308 | 349 | 491 | 498 | 517 | | 514.4 | 285 | 53 | | 450 | 18" | 50 | 360 | 398.6 | 541 | 558 | 567 | | 549.3 | 335 | 76 | | 500 | 20" | 56 | 405 | 445.4 | 596 | 620 | 627 | | 606.4 | 398 | 99 | | 600 | 24" | 62 | 486 | 529 | 698 | 737 | 734 | | 717.5 | 453 | 136 | | 700 | 28" | 67 | 588 | 636 | 813 | 807 | | | 831.8 | 512 | 171 | | 800 | 32" | 78 | 622 | 687 | 920 | 914 | | | 936.8 | 588 | 231 | | 900 | 36" | 95 | 720 | 794 | 1020 | 1014 | | | 1047.7 | 642 | 280 | | 1000 | 40" | 105 | 810 | 883 | 1127 | 1131 | | | 1162.1 | 723 | 354 |
| Connection | Wafer | | Nominal diameter | DN40-DN1000 | | Standard pressure rating | PN16 | | Maximum pressure rating | PN40 for DN40-DN100, PN20 for DN125-DN600 | | Flange accommodation | PN10, PN16, PN25, PN40; ANSI CLASS150 | | Face to face | Industrial standard | | Temperature range | -20°C to +85°C for NBR seat | | -20°C to +130°C for EPDM seat | | -20°C to +180°C for FPM seat | | -29°C to +400°C for metal to metal seat | | Coating | Galvanization for steel |
GENERAL INFORMATION Series C14 thin wafer swing check valve opens when the opening force exceeds the closing force. The opening force depends on the pressure or the flow volume and the closing force on the closing weight, the installation position and the size of the check valve. The thin wafer design drastically reduces the weight in comparison with conventional valves.
They have been widely used in Marine and offshore industry, Petrochemical industry, Pharmaceutical industry, Heating and cooling, Ventilation, Fir protection systems, Water industry, Beer and beverage industry, Nuclear power industry. FEATURES • Thin wafer short face-to-face dimension• Self-centering
• Low pressure drops
• Easy to install and maintenance
• Dual safe retainer keeping the disc

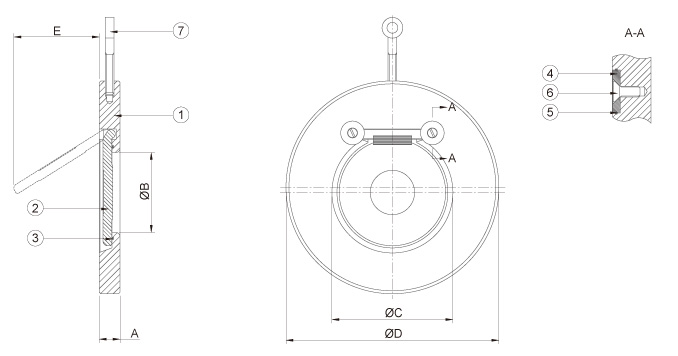

| No. | Part name | Material | | 1 | Body | Galvanized steel,SS316L | | 2 | Disc | CF8,CF8M | | 3 | Seat | NBR, EPDM, FPM, Metal to metal | | 4 | Washers | SS316L | | 5 | Retainer rings | SS316L | | 6 | Screws | SS316L | | 7 | Eye bolt | SS304 |
SIZE | A | B | C | D | E | WT(kg) | | DN | INCH | PN10 | PN16 | PN25 | PN40 | CLASS150 | | 25 | 1 | 14 | 13 | 29 | 73 | 73 | 73 | 73 | 66.7 | 14 | 0.5 | | 32 | 11/4" | 14 | 13 | 29 | 84 | 84 | 84 | 84 | 76.2 | 16 | 0.6 | | 40 | 11/2" | 14 | 22 | 39 | 0 | 94 | 94 | 94 | 85.7 | 25 | 0.9 | | 50 | 2" | 14 | 32 | 48 | 109 | 109 | 109 | 109 | 104.8 | 37 | 1.1 | | 65 | 21/2" | 14 | 40 | 59 | 129 | 129 | 129 | 129 | 123.8 | 50 | 1.5 | | 80 | 3" | 14 | 54 | 76 | 144 | 144 | 144 | 144 | 136.5 | 61 | 1.8 | | 100 | 4" | 18 | 70 | 96 | 164 | 164 | 170 | 170 | 174.6 | 77 | 3.0 | | 125 | 5" | 18 | 92 | 115 | 194 | 194 | 196 | | 196.8 | 94 | 3.4 | | 150 | 6" | 20 | 112 | 138 | 220 | 220 | 226 | | 222.2 | 100 | 5.4 | | 200 | 8" | 22 | 154 | 183 | 275 | 275 | 286 | | 279.4 | 152 | 7.7 | | 250 | 10" | 26 | 200 | 232 | 330 | 330 | 343 | | 339.7 | 180 | 13 | | 300 | 12" | 32 | 240 | 272 | 380 | 386 | 403 | | 409.5 | 215 | 23 | | 350 | 14" | 38 | 269 | 305 | 440 | 446 | 460 | | 450.9 | 245 | 38 | | 400 | 16" | 44 | 308 | 349 | 491 | 498 | 517 | | 514.4 | 285 | 53 | | 450 | 18" | 50 | 360 | 398.6 | 541 | 558 | 567 | | 549.3 | 335 | 76 | | 500 | 20" | 56 | 405 | 445.4 | 596 | 620 | 627 | | 606.4 | 398 | 99 | | 600 | 24" | 62 | 486 | 529 | 698 | 737 | 734 | | 717.5 | 453 | 136 | | 700 | 28" | 67 | 588 | 636 | 813 | 807 | | | 831.8 | 512 | 171 | | 800 | 32" | 78 | 622 | 687 | 920 | 914 | | | 936.8 | 588 | 231 | | 900 | 36" | 95 | 720 | 794 | 1020 | 1014 | | | 1047.7 | 642 | 280 | | 1000 | 40" | 105 | 810 | 883 | 1127 | 1131 | | | 1162.1 | 723 | 354 |
|
|
|
