Valve Indicator  ★★★
  • P04
    		•

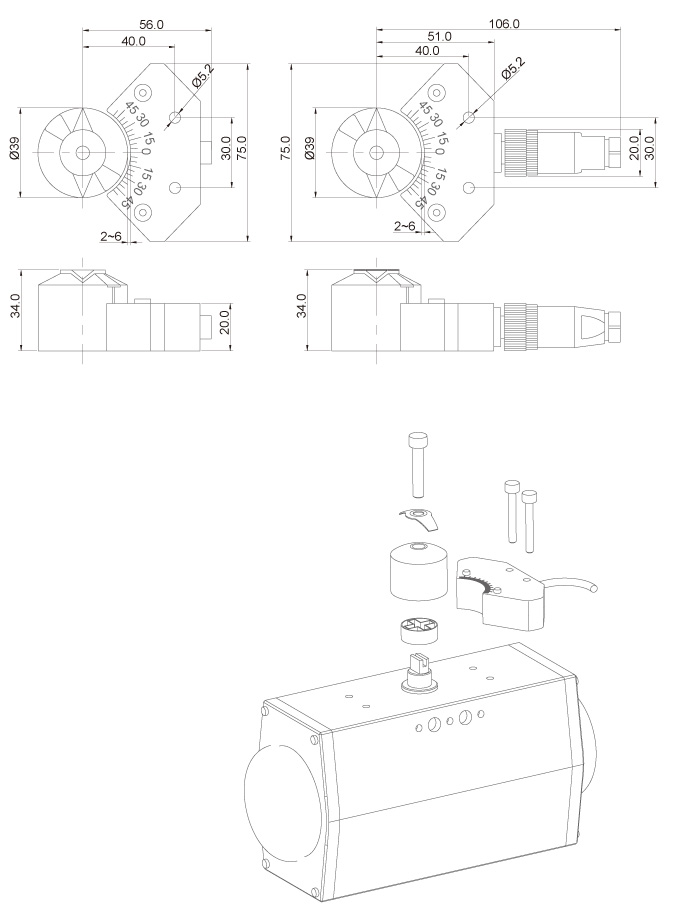

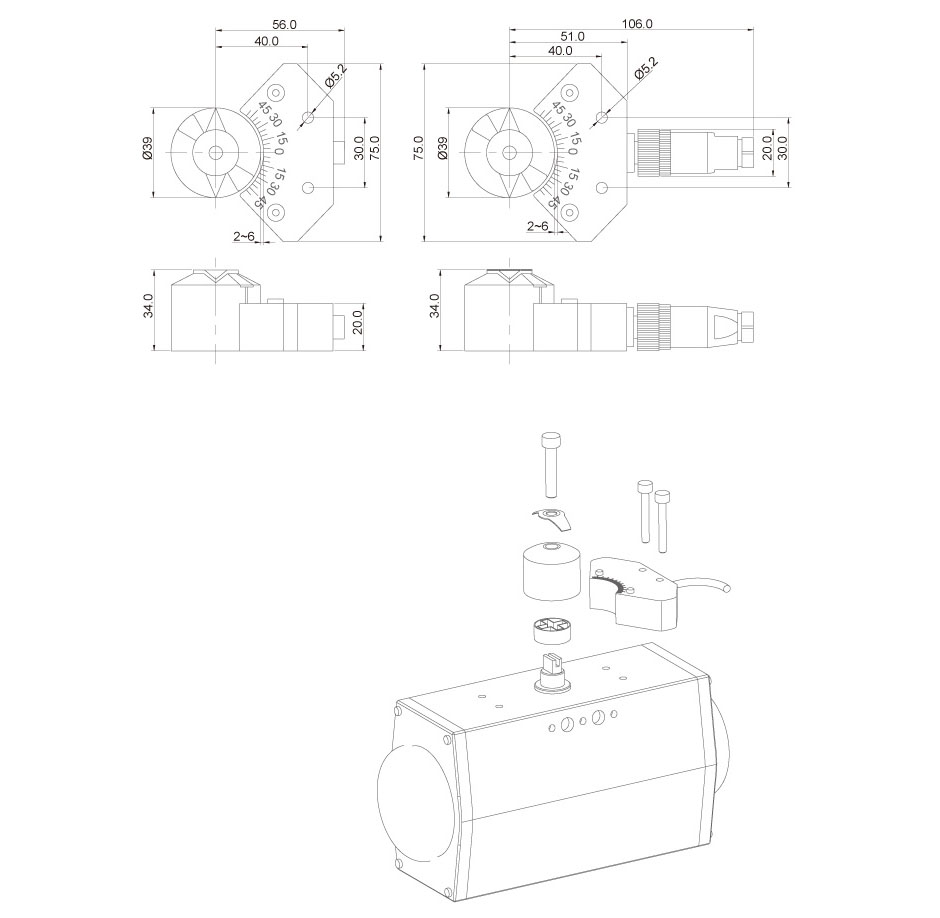

    GENERAL INFORMATION TECHNICAL DATA PARTS LIST DIMENSIONS(mm)

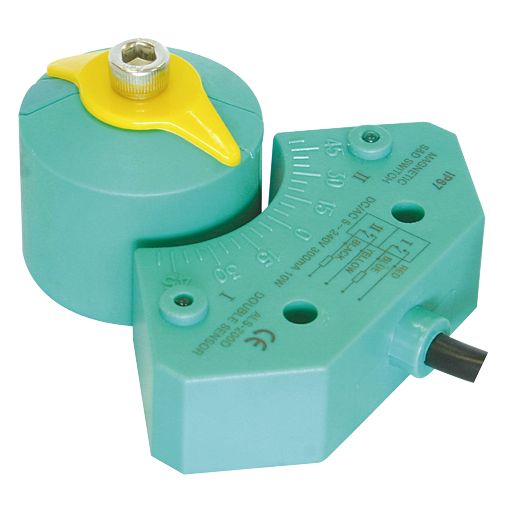

    Series P04 valve indicator is a rotary position indication device, which use two reed switches and two permanent magnets. They are encased in a plastic housing for protection and ease of mounting. The reed switches mounted on the top of actuator and the permanent magnets mounted on the stem of the actuator. Each switch and magnet complete a circuit when the actuator/valve closed/opened. The circuit breaks when the actuator/valve opened/closed. This device can senses mechanical position (on/off) of valve for remote PLC or PC indication. The visual indicator on the top of the device can also clearly display the valve position for local detection.

    FEATURES

    • Simple construction and installation
    • Small dimension
    • Easy maintenance
    • Flexible installation on different kinds of actuators

    Encase materialABS
    Contact formNormally Open(NO)
    Output type2 wire
    Switching capacity1W～10W
    Switching voltage5VDC/240VAC
    Switching current0～300mA
    Switching frequency0～4.8KHz
    Sensor position-45°/+45° ±10°
    Operating Temp.-40℃～+85℃
    Proximity distance1～6mm
    MountingStandard: 30x80 H:20,30
    Requiring: 30x130 H:20,30
    FastenersStainless steel
    WiringFL: Flying lead(70mm)
    P4: M12-4p wiring connector
