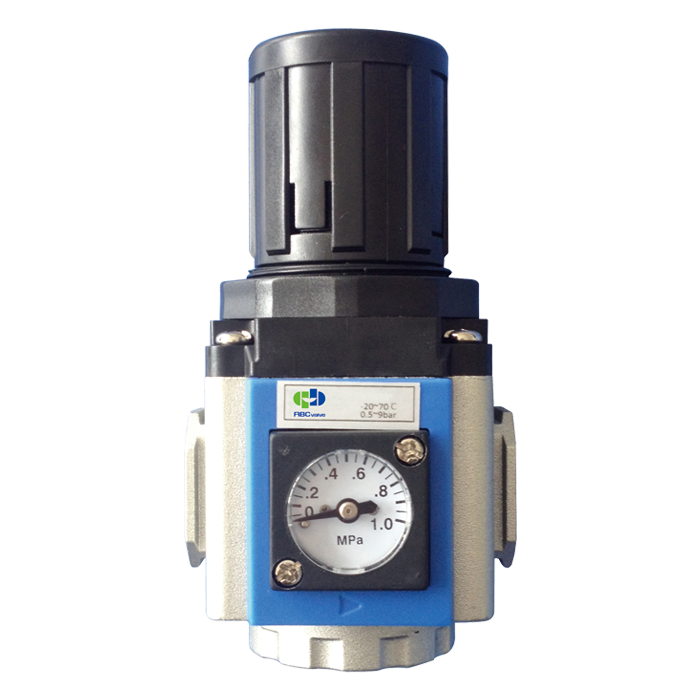

Air Pressure Regulator  ★★★
  • P30
  • Series P30 air pressure regulator is for regulating of air to pneumatic actuator.

    FEATURES

    • Embedded gauge save space of installation
    • Press-in self-locking device prevent changes causing by external disturbance during pressure regulating
    • Stable adjustment of pressure, high precision of repetition
    • Plate type installation, with fixing bracket installation for option
    • Low pressure type is available, with max. regulating pressure of 0.4MPa


    Operating mediumAir
    Adjustable pressure range0.15~0.9MPa
    Max. adjustable pressure1.0MPa
    Pressure resistance ensurance1.5MPa
    Operating Temp. range-20~70℃
    ConnectionG thread (PT,NPT are available on request)

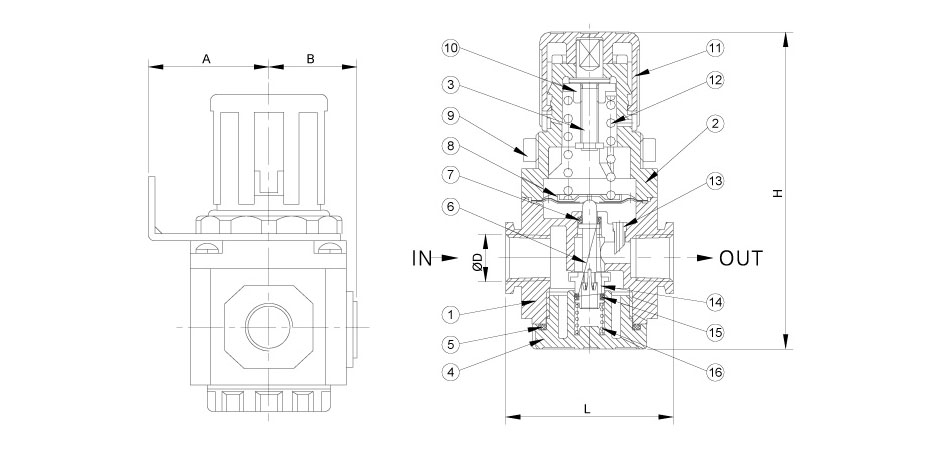

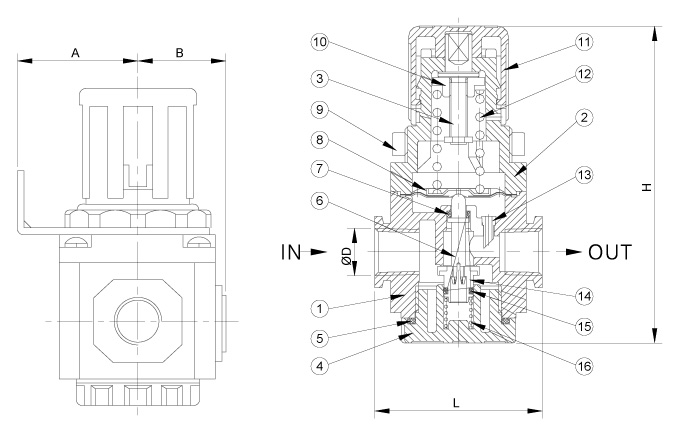

    No.Part nameMaterial
    1Regulating bodyAluminium alloy
    2Regulating seatAluminium alloy
    3Main regulating stemSteel
    4CapAluminium alloy
    5O-ringNBR
    6Regulating limbBrass
    7O-ringNBR
    8Regulating diaphragmSS304+rubber
    9Fixing-loop capAluminium alloy
    10Hexangular capSteel
    11Regulating buttonPOM
    12SpringSWC
    13Feedback tubePOM
    14PlugBrass+rubber
    15O-ringNBR
    16SpringStainless steel

    TYPE

    ABDHL
    200-063032G1/88947
    200-086230G1/48947
    300-084131G1/411360
    300-104131G3/811360
    300-154131G1/211360
    400-105040G3/814180
    400-155040G1/214180
