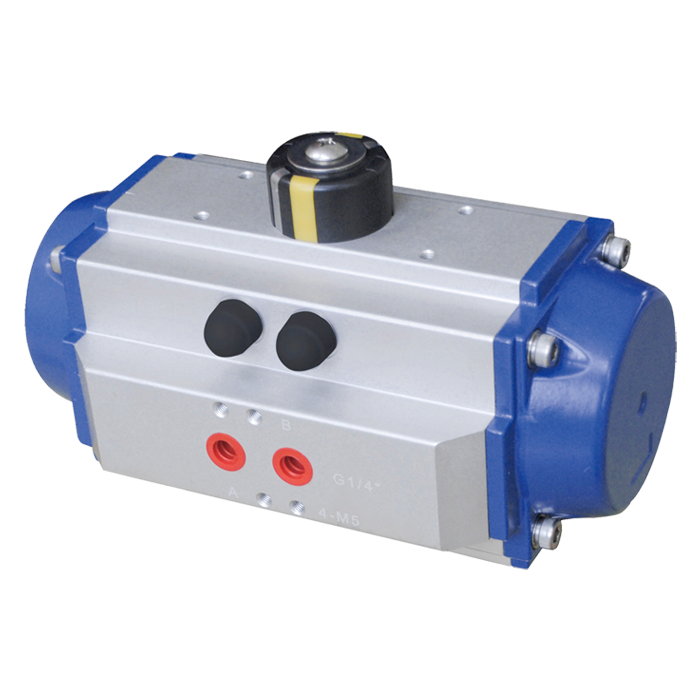

High quality industrial pneumatic actuator Robust anodized aluminum casing /body,1S05211 connection VDl/ VDE connection for position indication NAMUR connection for solenoid valves Mounted with plastic/metal indicator for inductive sensors




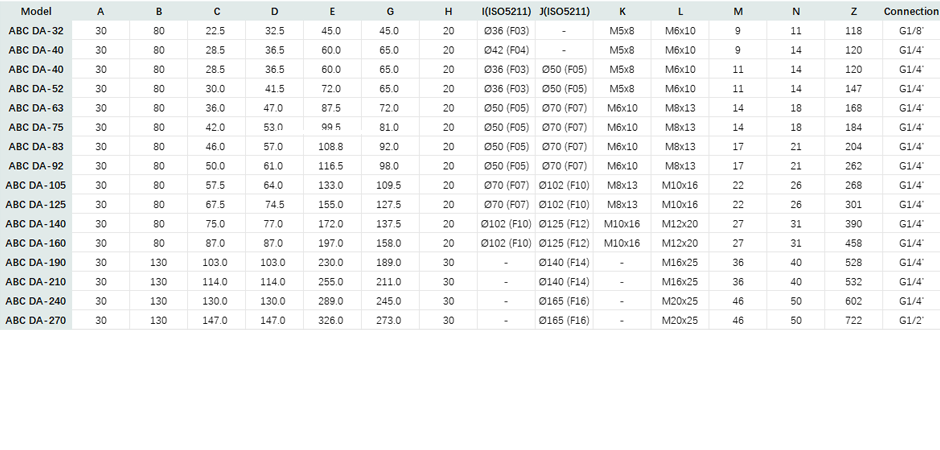

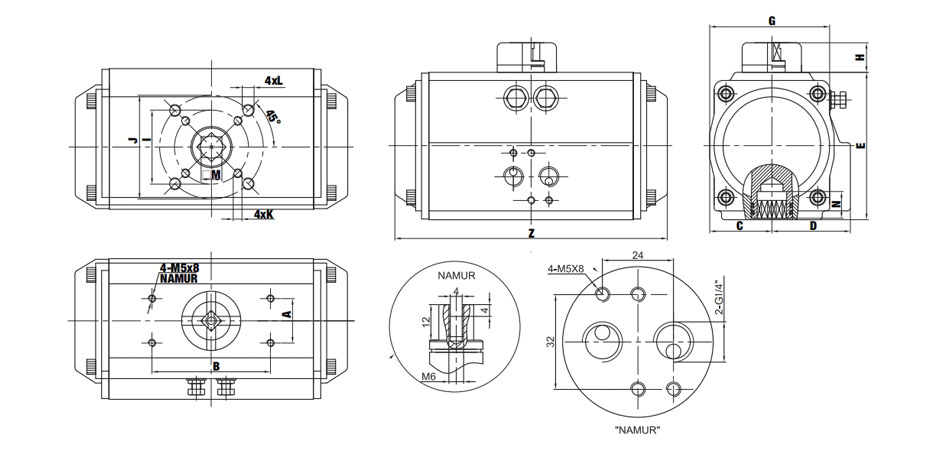

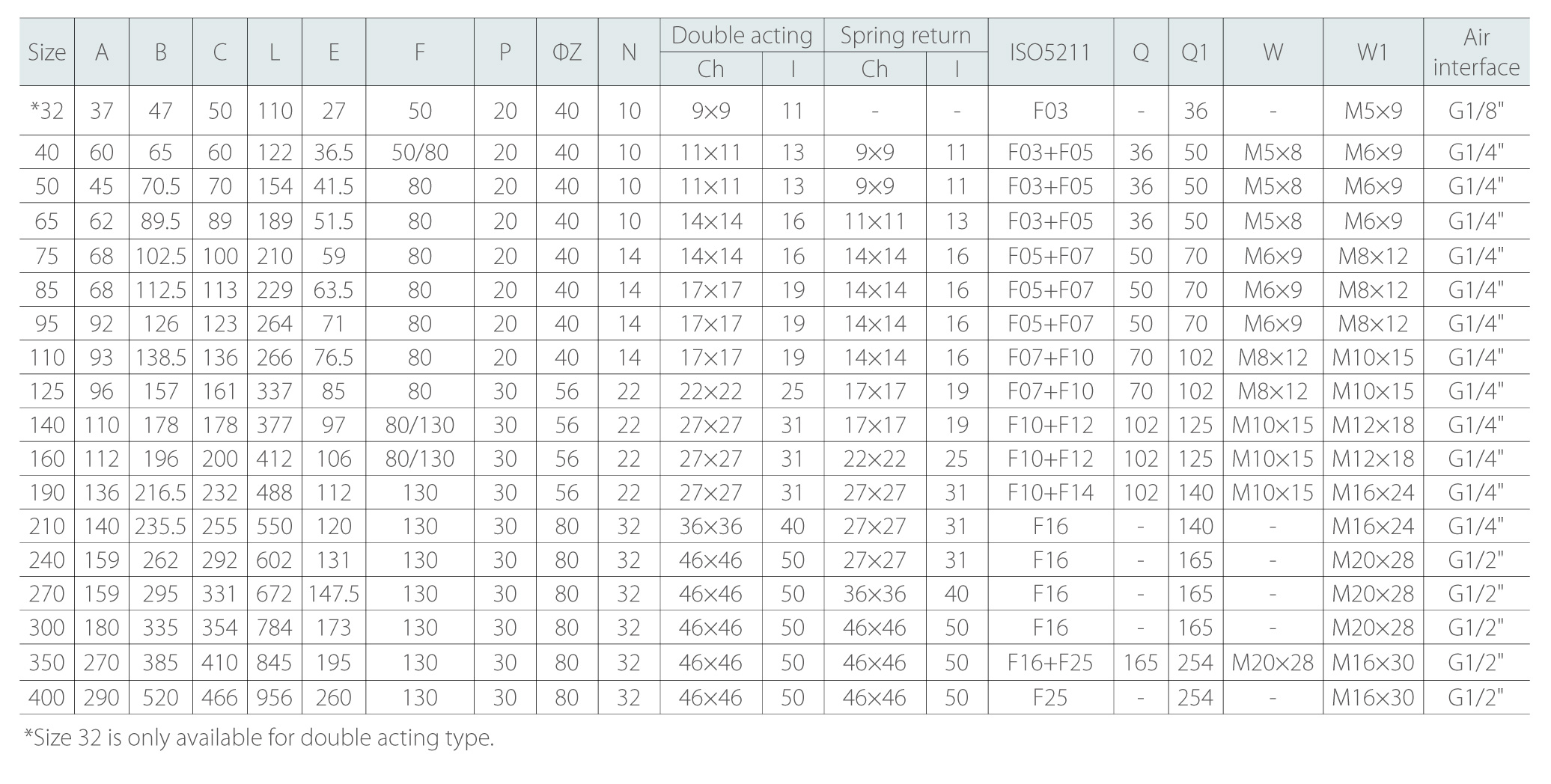

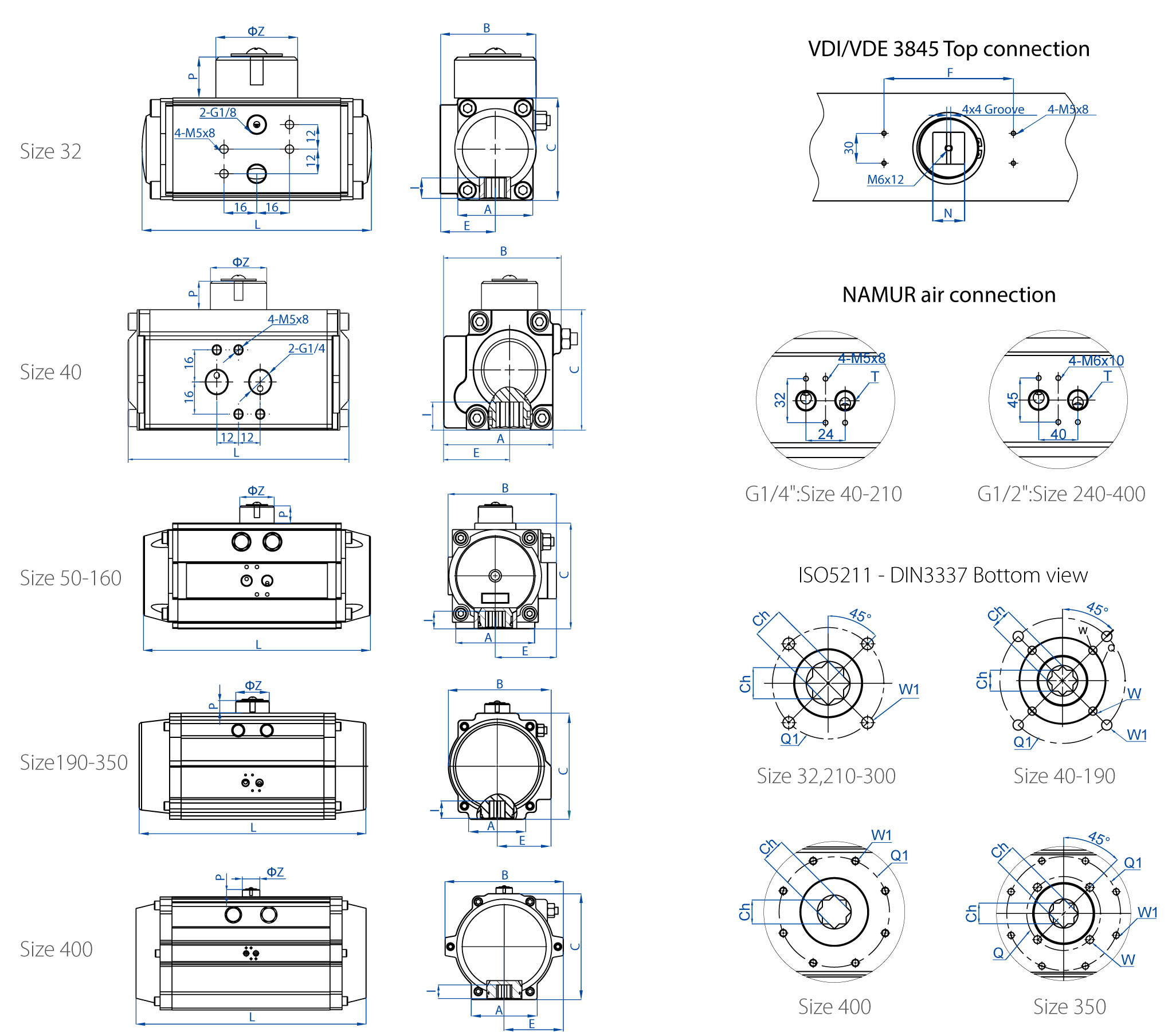

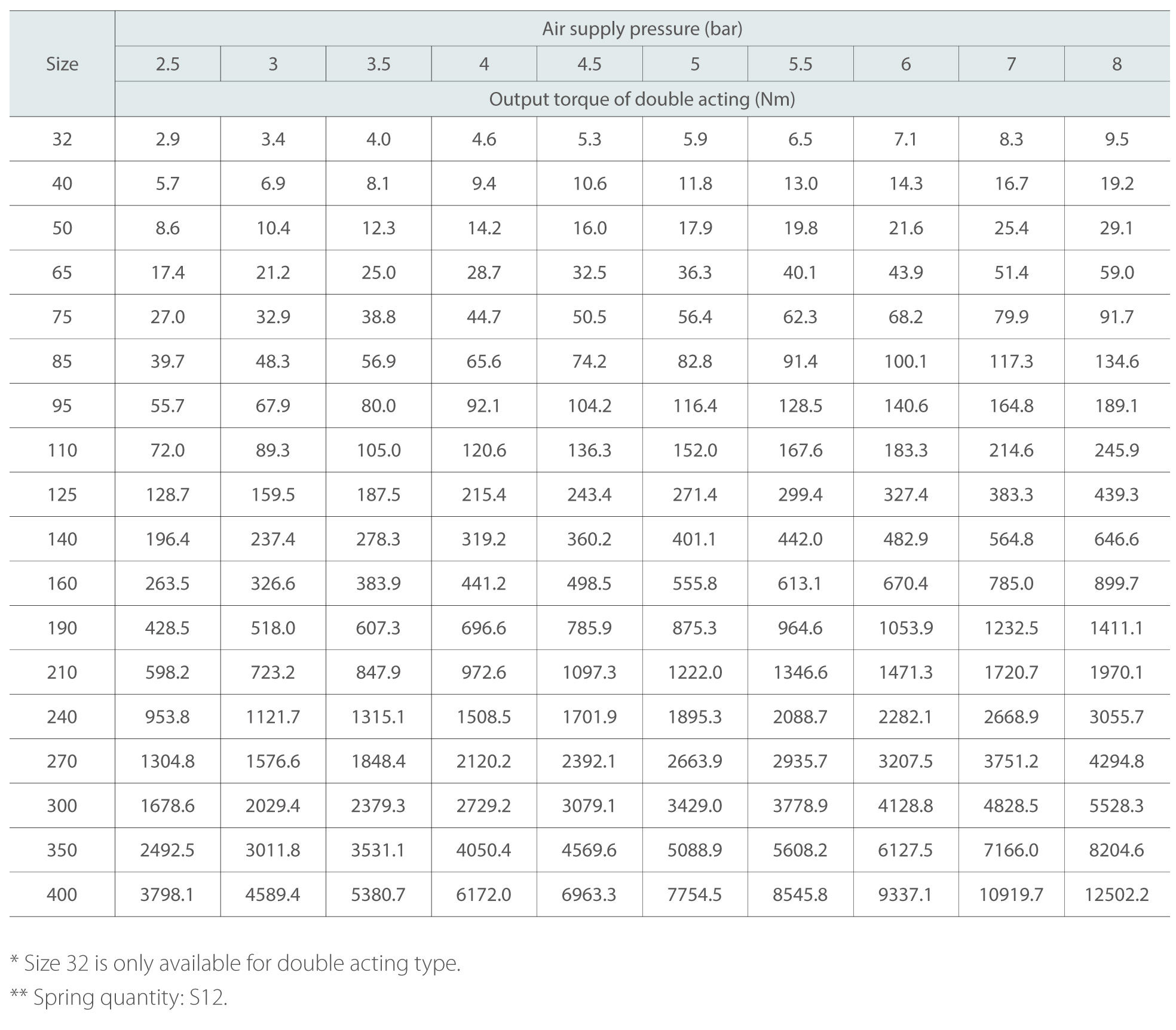

Body/ends | PTFE coated, Epoxy coated | Gaskets/O-rings | FPM (-15 to 150°C), Silicone (-35 to 80°C) | Rotation angle | 60°, 120°, 180° | Torque | 14 to 3,500Nm, at 6barg | Supply | 2,0 to 10bar dry, filtered air (Pneurop/ISO Class 4) | Connection | Namur and 2 pcs. 1/4” BSPP | Adjustment | Open/close +/- 5° (-5...5° and 85...95°) |

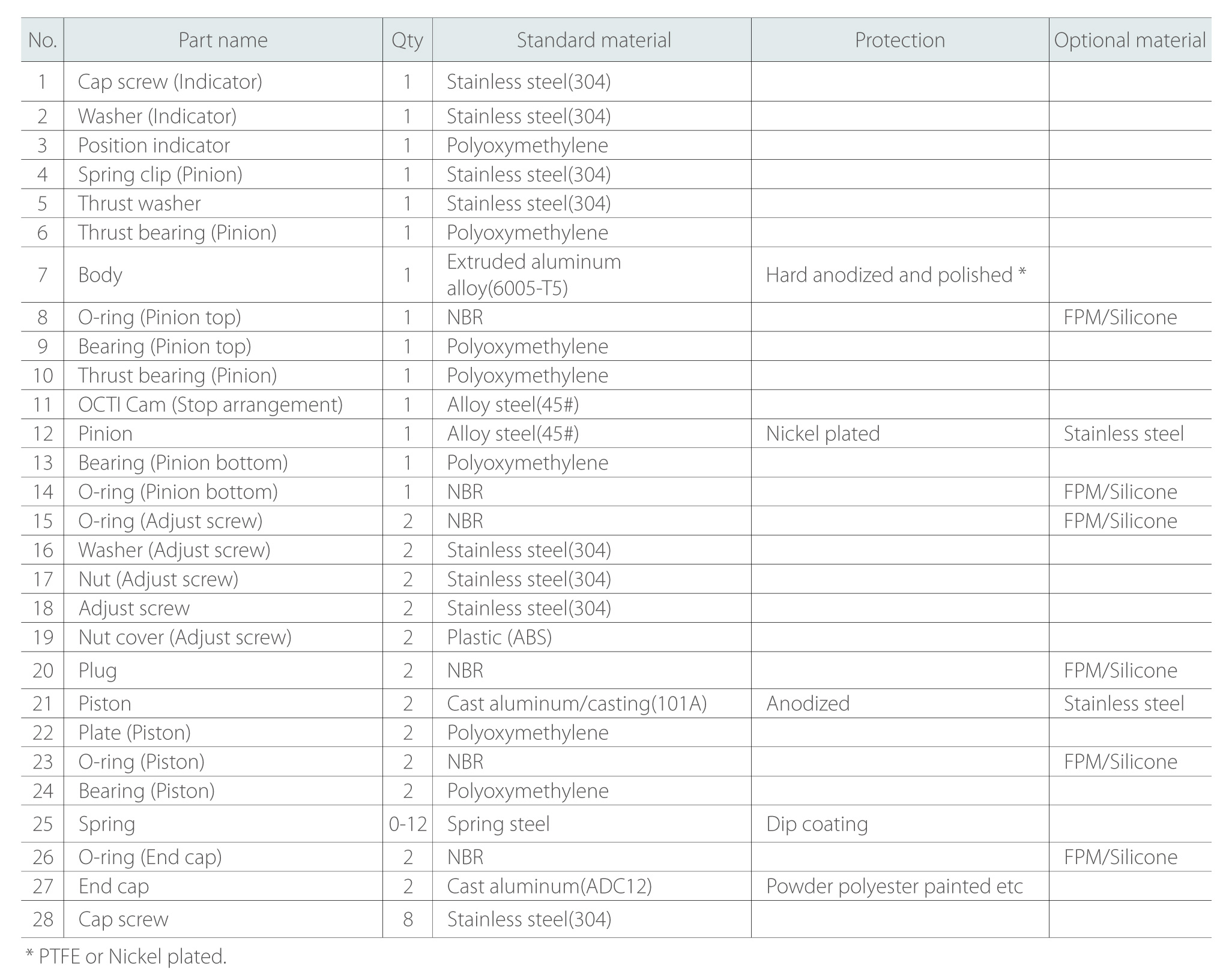

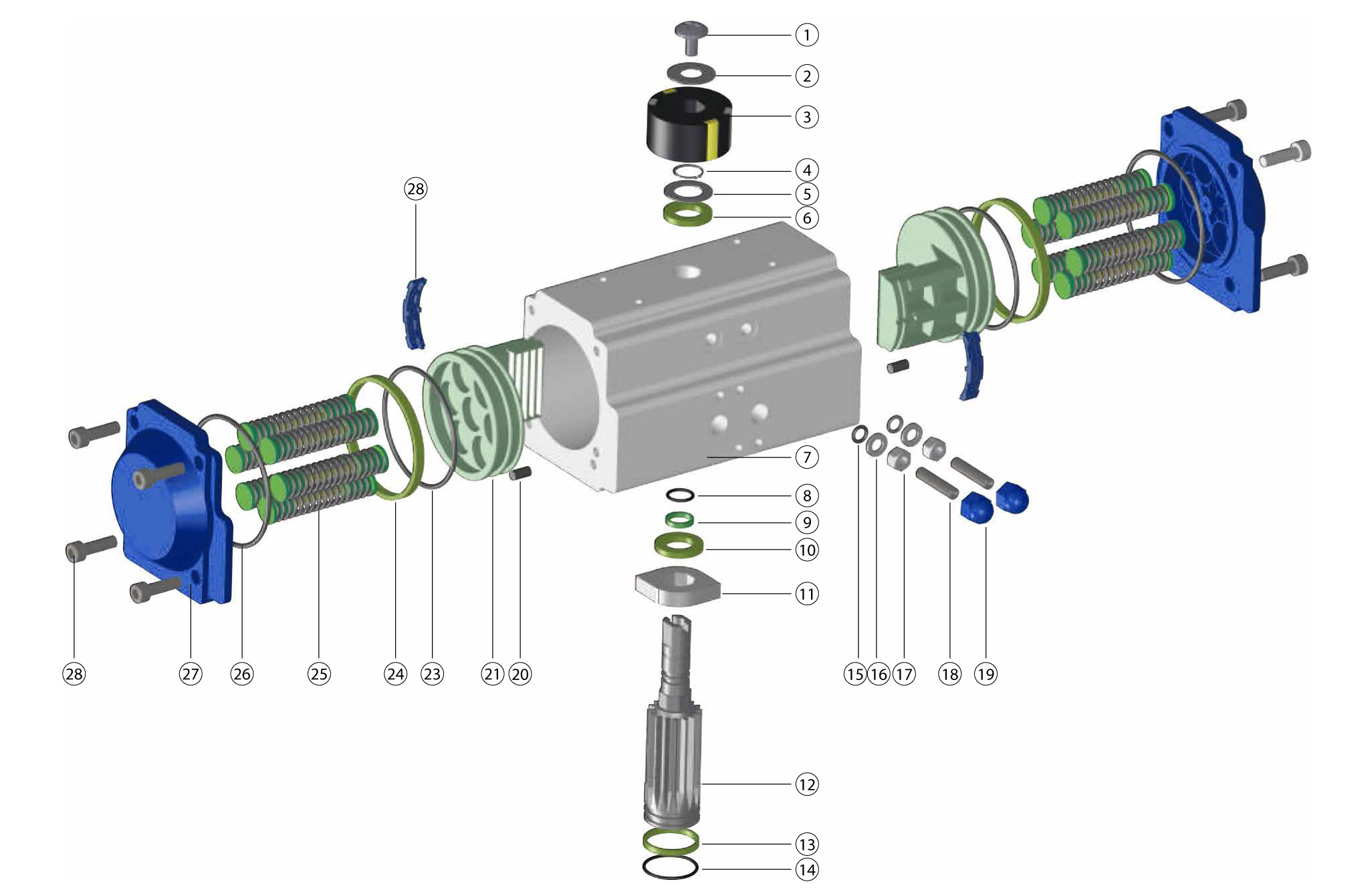

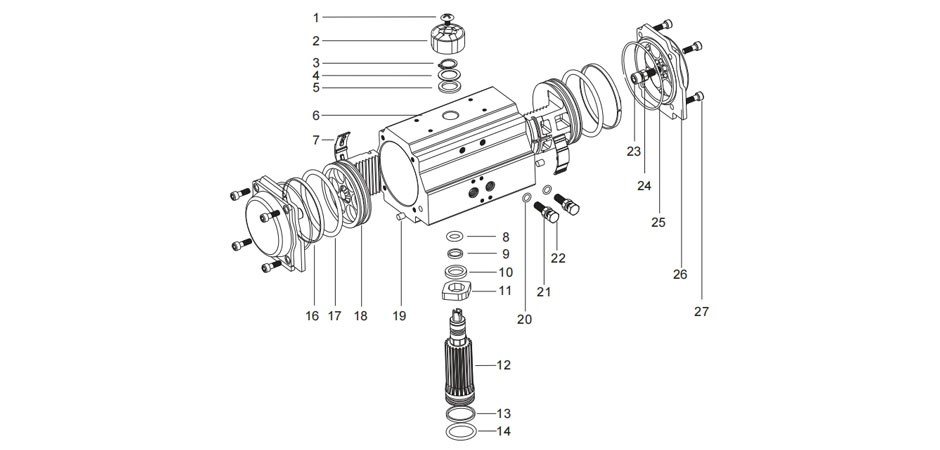

Pos | Description | Material | 1 | Indicator bolt | Stainless Steel AISI304/ABS | 2 | Indicator | Plastic (ABS) / AISI304 | 3 | Circlip | Stainless Steell AISI304 | 4 | Trust washer | Stainless Steel AISI304 | 5 | Outside washer | POM | 6 | Body | Aluminum (6005-T5) | 7 | Guide | POM | 8 | O-ring | NBR | 9 | Bearing | POM | 10 | Inside washer | POM | 11 | Cam | Steel 45 | 12 | Pinion | Steel 45, nickel-plated | 13 | Bearing | POM | 14 | O-ring | NBR | 16 | Bearing | POM | 17 | O-ring | NBR | 18 | Piston | Aluminum (A380) | 19 | Plug | NBR | 20 | O-ring | NBR | 21 | Nut | Stainless Steel AISI304 / A2 | 22 | Adjust screw / bolt | Stainless Steel AISI304 / A2 | 23 | Stop bolt | Stainless Steel AISI304 / A2 | 24 | Stop nut | Stainless Steel AISI304 / A2 | 25 | O-ring | NBR | 26 | End cap | Aluminum (A380) | 27 | Cap screw | Stainless Steel AISI304 / A2 |
Body/ends | PTFE coated, Epoxy coated | Gaskets/O-rings | FPM (-15 to 150°C), Silicone (-35 to 80°C) | Rotation angle | 60°, 120°, 180° | Torque | 14 to 3,500Nm, at 6barg | Supply | 2,0 to 10bar dry, filtered air (Pneurop/ISO Class 4) | Connection | Namur and 2 pcs. 1/4” BSPP | Adjustment | Open/close +/- 5° (-5...5° and 85...95°) |

High quality industrial pneumatic actuator Robust anodized aluminum casing /body,1S05211 connection VDl/ VDE connection for position indication NAMUR connection for solenoid valves Mounted with plastic/metal indicator for inductive sensors





Pos | Description | Material | 1 | Indicator bolt | Stainless Steel AISI304/ABS | 2 | Indicator | Plastic (ABS) / AISI304 | 3 | Circlip | Stainless Steell AISI304 | 4 | Trust washer | Stainless Steel AISI304 | 5 | Outside washer | POM | 6 | Body | Aluminum (6005-T5) | 7 | Guide | POM | 8 | O-ring | NBR | 9 | Bearing | POM | 10 | Inside washer | POM | 11 | Cam | Steel 45 | 12 | Pinion | Steel 45, nickel-plated | 13 | Bearing | POM | 14 | O-ring | NBR | 16 | Bearing | POM | 17 | O-ring | NBR | 18 | Piston | Aluminum (A380) | 19 | Plug | NBR | 20 | O-ring | NBR | 21 | Nut | Stainless Steel AISI304 / A2 | 22 | Adjust screw / bolt | Stainless Steel AISI304 / A2 | 23 | Stop bolt | Stainless Steel AISI304 / A2 | 24 | Stop nut | Stainless Steel AISI304 / A2 | 25 | O-ring | NBR | 26 | End cap | Aluminum (A380) | 27 | Cap screw | Stainless Steel AISI304 / A2 |
|
