Limit Switch  ★★★
  • P60
    		•

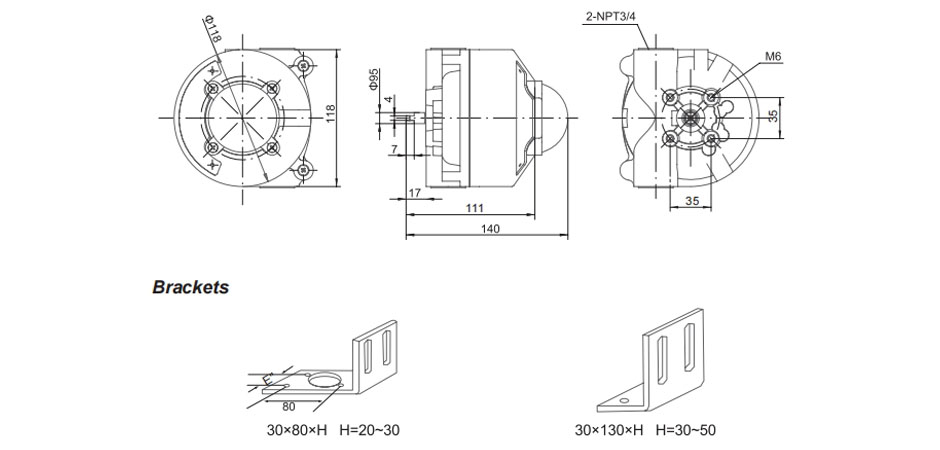

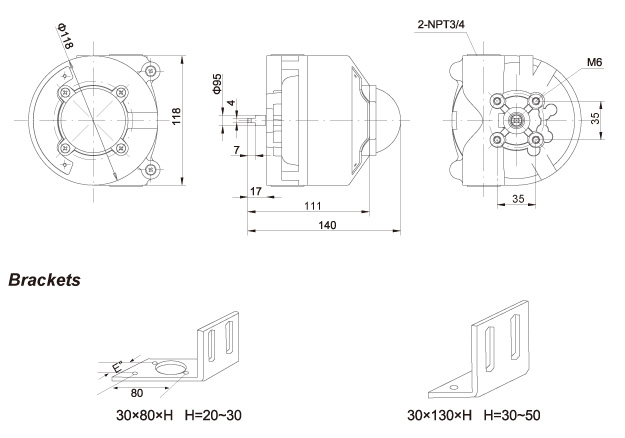

    GENERAL INFORMATION TECHNICAL DATA PARTS LIST DIMENSIONS(mm)

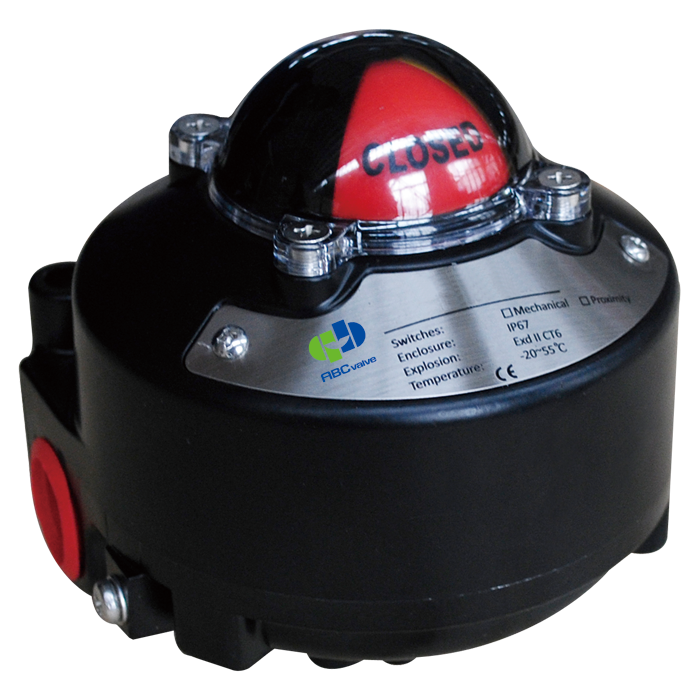

    Series P60 limit switch is mounted on pneumatic actuator to show the opened or closed position of valve and give out signal. Explosion proof design is for preventing any spark to environment.

    FEATURES

    • Solid and compact design
    • High level weather proof IP67 and explosion proof Exd Ⅱ CT6
    • Multi-point terminal strip, standard 8 points and enough strips for connection
    • Quick-set cam-Spring loaded splined cam, no need to adjust again after initial setting
    • Captive cover bolts-No worry to loose bolts while cover open
    • Easy mounting-NAMUR standard stainless steel shaft, ISO5211 bracket with stainless steel as standard
    • Visual position indicator, with non-visual indicator type available on request

    ItemStandardOption
    Weather proofIP67
    Explosion proofExd Ⅱ CT6
    Temperature range-25℃～+85℃
    Cable entry2x3/4NPTPT3/4, PF3/4
    Terminal strips89～24
    Position range0～90°0～180°
    Position indicatorOpen-Yellow; Close-Red
    SwitchesMechanical, proximity, magnet
    Potentiometer1KΩ(0～5KΩ, 0～10KΩ)
    Current feedback4～20mA
