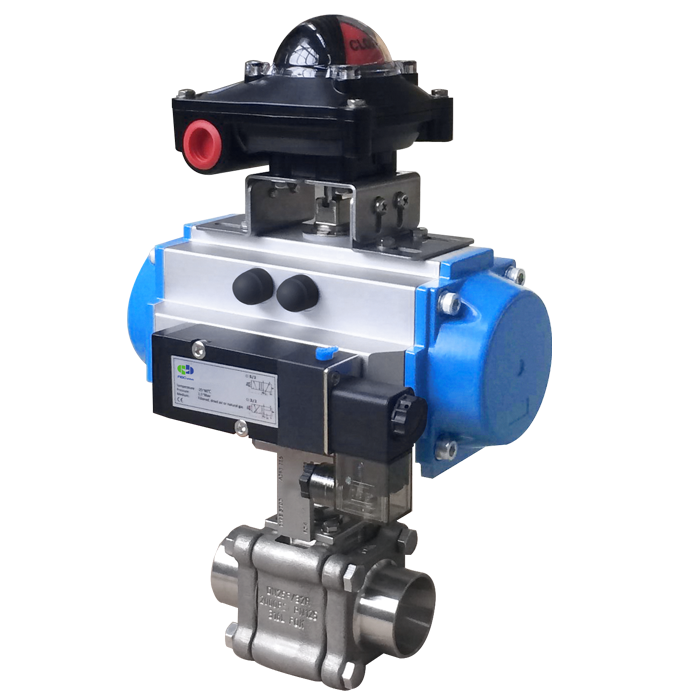

 Series B33 high performance 3pc ball valve is designed and suitable for many high performance service such as high pressure, fire safe, flexible connection of actuators, high cycle life, easy field maintenance, etc.. 3PC design makes the maintenance convenient without caps uninstalled. Butt-weld ends, socket weld ends and threaded ends popular for this valve.
FEATURES • 3 piece swing-out design for convenient field maintenance• Both full bore and reduced bore available
• Investment stainless steel casting with meticulous surface
• Blow-out-proof stem
• PTFE with 25% carbon fiber seat standard for high pressure and temperature and more resistant to wear, wide range of seat and seal materials available
• Pressure relief hole in ball slot
• Mounting pad according to ISO5211 with center ring
• Anti-static devices for ball-stem-body
• Sphere floating stem brings extra high cycle life

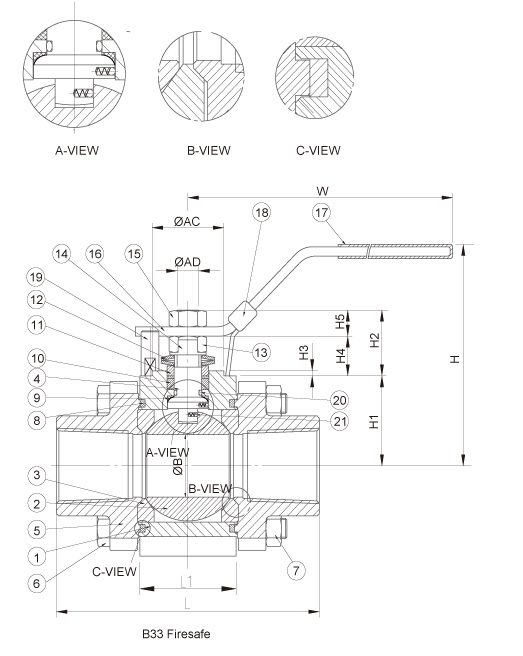

• Fire safe version of valve available
• Fully encapsulated body seals allow welding in line without disassembly
| Connection | Threaded BSPP-ISO228/1 | | Butt weld ends-ISO1127, EN12627, SMS3008 | | Soket weld ANSI B16.11 | | Nominal diameter | Full bore 1/4"-2 1/2",Reduced bore 1/2" to 2 1/2" | | Pressure rating | 2000PSI for 1/4"-1", 1500PSI for 1 1/4"-2 1/2" | | Face to face | Bolt circle diameter and face to face dimensions of the body is equal to worcester, Valtac and Mecafrance. This means that the valve body can be installed between existing end caps | | Temperature range | -38°C to +250°C | | Operation | Hand lever, pneumatic actuator, electric actuator |
| No. | Part name | Material | | 1 | Body | CF8M | A105 | | 2 | Ball | SS316L | SS304 | | 3 | Seat | RPTFE | | 4 | Stem | SS316L | SS304 | | 5 | Cap | CF3M | A105 | | 6 | Bolt | SS304 | | 7 | Nut | SS304 | | 8 | Body gasket | PTFE for standard, Graphite for firesafe | | 9 | Thrust washer | RPTFE | | 10 | Packing | RPTFE for standard, Graphite for firesafe | | 11 | Gland | SS304 | | 12 | Belleville washer | SS304 | | 13 | Nut | SS304 | | 14 | Lock washer | SS304 | | 15 | Nut | SS304 | | 16 | Handle | SS304 | | 17 | Handle sleeve | PVC | | 18 | Handle lock | SS304 | | 19 | Stop bolt | SS304 | | 20 | O ring | FPM | | 21 | Anti-static device | SS316 |

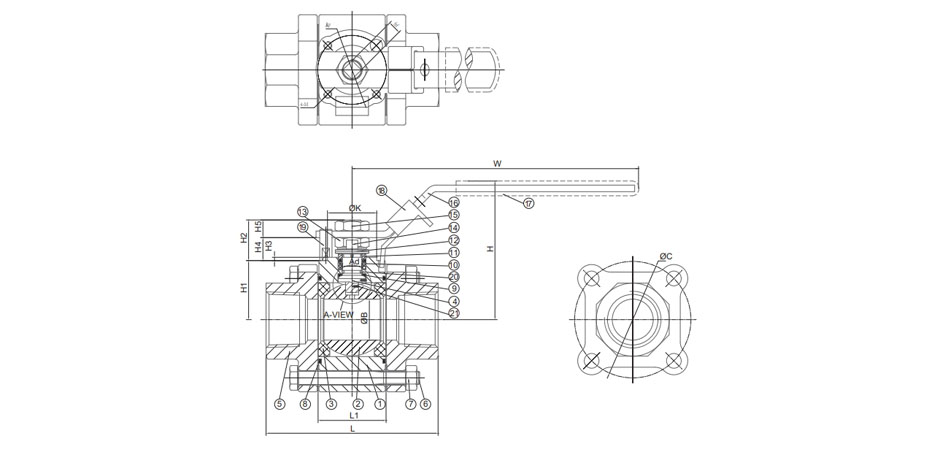

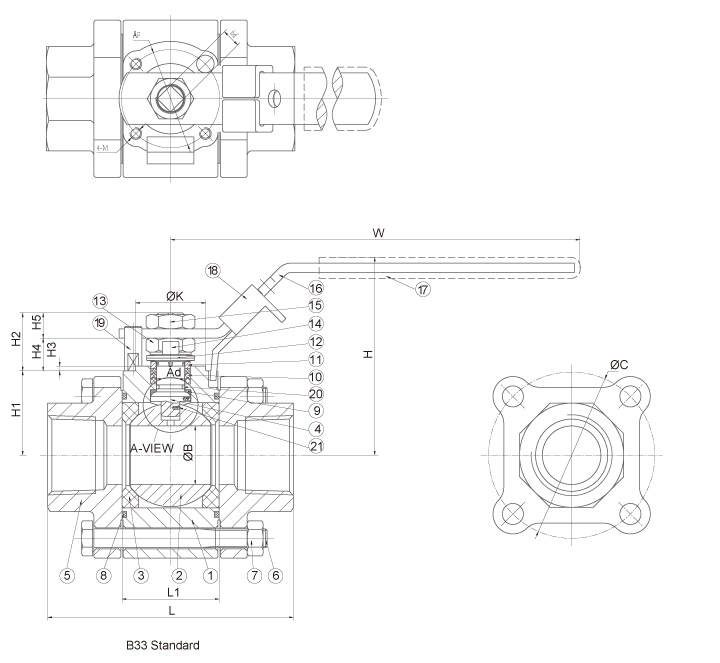

| SIZE | B | C | EN12627 | ISO1127 | SMS3008 | E | H | H1 | H2 | H3 | H4 | L | L1 | W | Mounting flange | Stem | WT(kg) | | DN | INCH | d | D | d | D | d | D | ISO5211 | F | M | K | f | H5 | | 8F | 1/4"F | 10 | 45.0 | 11.5 | 14.0 | 10.3 | 13.5 | 8.0 | 10.0 | 10 | 63 | 30 | 7.5 | 0.5 | 2 | 65 | 20.5 | 134 | F03 | 36 | M5 | 25 | 7 | 5.5 | 0.8 | | 10F | 3/8"F | 10 | 45.0 | 12.6 | 17.2 | 14.0 | 17.2 | 10.0 | 12.0 | 10 | 63 | 30 | 7.5 | 0.5 | 2 | 65 | 20.5 | 134 | F03 | 36 | M5 | 25 | 7 | 5.5 | 0.8 | | 15R | 1/2"R | 10 | 45.0 | 15.0 | 21.7 | 18.1 | 21.3 | 16.0 | 18.0 | | 63 | 30 | 7.5 | 0.5 | 2 | 65 | 20.5 | 134 | F03 | 36 | M5 | 25 | 7 | 5.5 | 0.8 | | 15F | 1/2"F | 15 | 54.0 | 15.0 | 21.7 | 18.1 | 21.3 | 16.0 | 18.0 | 10 | 68 | 29 | 17 | 2 | 8.6 | 75 | 24.5 | 134 | F03 | 36 | M5 | 25 | 7 | 8.4 | 0.8 | | 20R | 3/4"R | 15 | 54.0 | 20.5 | 27.2 | 23.7 | 26.9 | 22.6 | 25.0 | | 68 | 29 | 17 | 2 | 8.6 | 75 | 24.5 | 134 | F03 | 36 | M5 | 25 | 7 | 8.4 | 0.9 | | 20F | 3/4"F | 20 | 62.5 | 20.5 | 27.2 | 23.7 | 26.9 | 22.6 | 25.0 | 13 | 72 | 33 | 18 | 2 | 8.6 | 90 | 31.5 | 134 | F03 | 36 | M5 | 25 | 7 | 9.2 | 1.3 | | 25R | 1"R | 20 | 62.5 | 25.7 | 34.0 | 29.7 | 33.7 | 29.6 | 32.0 | | 72 | 33 | 18 | 2 | 8.6 | 90 | 31.5 | 134 | F03 | 36 | M5 | 25 | 7 | 9.2 | 1.4 | | 25F | 1"F | 25 | 71.0 | 25.7 | 34.0 | 29.7 | 33.7 | 29.6 | 32.0 | 13 | 85 | 36 | 24 | 2 | 14 | 110 | 41.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.1 | | 32R | 1 1/4"R | 25 | 71.0 | 34.4 | 42.7 | 38.4 | 42.4 | 31.3 | 33.7 | | 85 | 36 | 24 | 2 | 14 | 110 | 41.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.2 | | 32F | 1 1/4"F | 32 | 80.0 | 34.4 | 42.7 | 38.4 | 42.4 | 31.3 | 33.7 | 13 | 89 | 40 | 24 | 2 | 14 | 115 | 48.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.6 | | 40R | 1 1/2"R | 32 | 80.0 | 40.3 | 48.6 | 44.3 | 48.3 | 35.6 | 38.0 | | 89 | 40 | 24 | 2 | 14 | 115 | 48.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.7 | | 40F | 1 1/2"F | 38 | 94.0 | 40.3 | 48.6 | 44.3 | 48.3 | 35.6 | 38.0 | 13 | 100 | 46.7 | 30 | 2.3 | 16 | 130 | 56.3 | 210 | F05 | 50 | M6 | 35 | 11 | 13.7 | 3.8 | | 50R | 2"R | 38 | 94.0 | 51.3 | 60.5 | 55.1 | 60.3 | 48.6 | 51.0 | | 100 | 46.7 | 30 | 2.3 | 16 | 130 | 56.3 | 210 | F05 | 50 | M6 | 35 | 11 | 13.7 | 4 | | 50F | 2"F | 50 | 112.5 | 51.3 | 60.5 | 55.1 | 60.3 | 48.6 | 51.0 | 16 | 118 | 69.5 | 25.5 | 1.5 | 11.6 | 145 | 71.5 | 210 | F05 | 50 | M6 | 35 | 11 | 13.9 | 5.5 | | 65R | 2 1/2"R | 50 | 112.5 | 67.1 | 76.3 | 70.9 | 76.1 | 60.3 | 63.5 | | 118 | 69.5 | 25.5 | 1.5 | 11.6 | 145 | 71.5 | 210 | F05 | 50 | M6 | 35 | 11 | 13.9 | 6.8 |
| Connection | Threaded BSPP-ISO228/1 | | Butt weld ends-ISO1127, EN12627, SMS3008 | | Soket weld ANSI B16.11 | | Nominal diameter | Full bore 1/4"-2 1/2",Reduced bore 1/2" to 2 1/2" | | Pressure rating | 2000PSI for 1/4"-1", 1500PSI for 1 1/4"-2 1/2" | | Face to face | Bolt circle diameter and face to face dimensions of the body is equal to worcester, Valtac and Mecafrance. This means that the valve body can be installed between existing end caps | | Temperature range | -38°C to +250°C | | Operation | Hand lever, pneumatic actuator, electric actuator |
Series B33 high performance 3pc ball valve is designed and suitable for many high performance service such as high pressure, fire safe, flexible connection of actuators, high cycle life, easy field maintenance, etc.. 3PC design makes the maintenance convenient without caps uninstalled. Butt-weld ends, socket weld ends and threaded ends popular for this valve. FEATURES • 3 piece swing-out design for convenient field maintenance• Both full bore and reduced bore available
• Investment stainless steel casting with meticulous surface
• Blow-out-proof stem
• PTFE with 25% carbon fiber seat standard for high pressure and temperature and more resistant to wear, wide range of seat and seal materials available
• Pressure relief hole in ball slot
• Mounting pad according to ISO5211 with center ring
• Anti-static devices for ball-stem-body
• Sphere floating stem brings extra high cycle life
• Fire safe version of valve available
• Fully encapsulated body seals allow welding in line without disassembly
| No. | Part name | Material | | 1 | Body | CF8M | A105 | | 2 | Ball | SS316L | SS304 | | 3 | Seat | RPTFE | | 4 | Stem | SS316L | SS304 | | 5 | Cap | CF3M | A105 | | 6 | Bolt | SS304 | | 7 | Nut | SS304 | | 8 | Body gasket | PTFE for standard, Graphite for firesafe | | 9 | Thrust washer | RPTFE | | 10 | Packing | RPTFE for standard, Graphite for firesafe | | 11 | Gland | SS304 | | 12 | Belleville washer | SS304 | | 13 | Nut | SS304 | | 14 | Lock washer | SS304 | | 15 | Nut | SS304 | | 16 | Handle | SS304 | | 17 | Handle sleeve | PVC | | 18 | Handle lock | SS304 | | 19 | Stop bolt | SS304 | | 20 | O ring | FPM | | 21 | Anti-static device | SS316 |
| SIZE | B | C | EN12627 | ISO1127 | SMS3008 | E | H | H1 | H2 | H3 | H4 | L | L1 | W | Mounting flange | Stem | WT(kg) | | DN | INCH | d | D | d | D | d | D | ISO5211 | F | M | K | f | H5 | | 8F | 1/4"F | 10 | 45.0 | 11.5 | 14.0 | 10.3 | 13.5 | 8.0 | 10.0 | 10 | 63 | 30 | 7.5 | 0.5 | 2 | 65 | 20.5 | 134 | F03 | 36 | M5 | 25 | 7 | 5.5 | 0.8 | | 10F | 3/8"F | 10 | 45.0 | 12.6 | 17.2 | 14.0 | 17.2 | 10.0 | 12.0 | 10 | 63 | 30 | 7.5 | 0.5 | 2 | 65 | 20.5 | 134 | F03 | 36 | M5 | 25 | 7 | 5.5 | 0.8 | | 15R | 1/2"R | 10 | 45.0 | 15.0 | 21.7 | 18.1 | 21.3 | 16.0 | 18.0 | | 63 | 30 | 7.5 | 0.5 | 2 | 65 | 20.5 | 134 | F03 | 36 | M5 | 25 | 7 | 5.5 | 0.8 | | 15F | 1/2"F | 15 | 54.0 | 15.0 | 21.7 | 18.1 | 21.3 | 16.0 | 18.0 | 10 | 68 | 29 | 17 | 2 | 8.6 | 75 | 24.5 | 134 | F03 | 36 | M5 | 25 | 7 | 8.4 | 0.8 | | 20R | 3/4"R | 15 | 54.0 | 20.5 | 27.2 | 23.7 | 26.9 | 22.6 | 25.0 | | 68 | 29 | 17 | 2 | 8.6 | 75 | 24.5 | 134 | F03 | 36 | M5 | 25 | 7 | 8.4 | 0.9 | | 20F | 3/4"F | 20 | 62.5 | 20.5 | 27.2 | 23.7 | 26.9 | 22.6 | 25.0 | 13 | 72 | 33 | 18 | 2 | 8.6 | 90 | 31.5 | 134 | F03 | 36 | M5 | 25 | 7 | 9.2 | 1.3 | | 25R | 1"R | 20 | 62.5 | 25.7 | 34.0 | 29.7 | 33.7 | 29.6 | 32.0 | | 72 | 33 | 18 | 2 | 8.6 | 90 | 31.5 | 134 | F03 | 36 | M5 | 25 | 7 | 9.2 | 1.4 | | 25F | 1"F | 25 | 71.0 | 25.7 | 34.0 | 29.7 | 33.7 | 29.6 | 32.0 | 13 | 85 | 36 | 24 | 2 | 14 | 110 | 41.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.1 | | 32R | 1 1/4"R | 25 | 71.0 | 34.4 | 42.7 | 38.4 | 42.4 | 31.3 | 33.7 | | 85 | 36 | 24 | 2 | 14 | 110 | 41.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.2 | | 32F | 1 1/4"F | 32 | 80.0 | 34.4 | 42.7 | 38.4 | 42.4 | 31.3 | 33.7 | 13 | 89 | 40 | 24 | 2 | 14 | 115 | 48.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.6 | | 40R | 1 1/2"R | 32 | 80.0 | 40.3 | 48.6 | 44.3 | 48.3 | 35.6 | 38.0 | | 89 | 40 | 24 | 2 | 14 | 115 | 48.5 | 175 | F04 | 42 | M5 | 30 | 9 | 10.0 | 2.7 | | 40F | 1 1/2"F | 38 | 94.0 | 40.3 | 48.6 | 44.3 | 48.3 | 35.6 | 38.0 | 13 | 100 | 46.7 | 30 | 2.3 | 16 | 130 | 56.3 | 210 | F05 | 50 | M6 | 35 | 11 | 13.7 | 3.8 | | 50R | 2"R | 38 | 94.0 | 51.3 | 60.5 | 55.1 | 60.3 | 48.6 | 51.0 | | 100 | 46.7 | 30 | 2.3 | 16 | 130 | 56.3 | 210 | F05 | 50 | M6 | 35 | 11 | 13.7 | 4 | | 50F | 2"F | 50 | 112.5 | 51.3 | 60.5 | 55.1 | 60.3 | 48.6 | 51.0 | 16 | 118 | 69.5 | 25.5 | 1.5 | 11.6 | 145 | 71.5 | 210 | F05 | 50 | M6 | 35 | 11 | 13.9 | 5.5 | | 65R | 2 1/2"R | 50 | 112.5 | 67.1 | 76.3 | 70.9 | 76.1 | 60.3 | 63.5 | | 118 | 69.5 | 25.5 | 1.5 | 11.6 | 145 | 71.5 | 210 | F05 | 50 | M6 | 35 | 11 | 13.9 | 6.8 |
|
