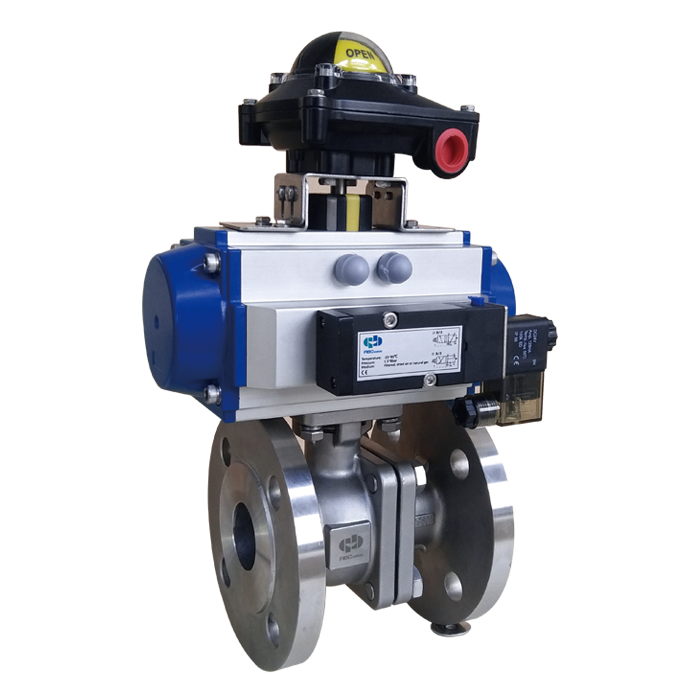

Series B50 2pc flanged ball valve is full bore designed and suitable for shutoff of various medium without much dirt such as air, gas, water, oil and liquids. FEATURES • 2 piece compact design of body Full bore for better Kv/Cv • Investment casting with meticulous surface • Blow-out-proof stem • Both pure PTFE and 25% carbon fiber reinforced RPTFE seat available • Pressure relief hole in ball slot • ISO5211 direct mounting pad for easy automation • Anti-static devices for ball-stem-body • Fire safe design
Connection | Flanged ends according to EN1092-1 | Nominal diameter | 1/2"-4" | Pressure rating | PN40 for DN15-DN50, PN16 for DN65-DN100 | Face to face | DIN3202 F4 | Temperature range | -20°C to +200°C | Operation | Hand lever, pneumatic actuator, electric actuator |

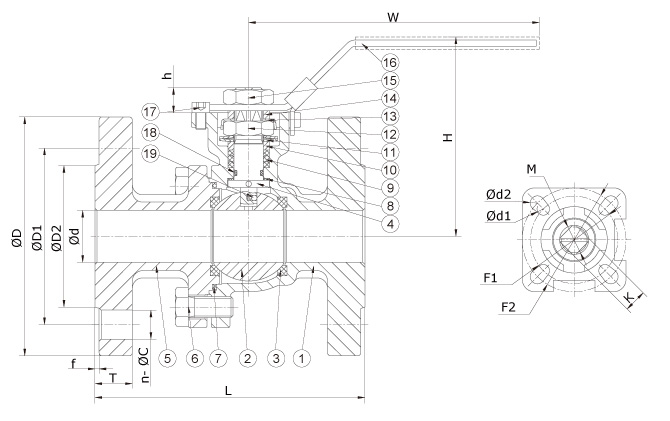

No. | Part name | Material | 1 | Body | CF8M | CF8 | WCB | 2 | Ball | SS316L | SS304 | SS304 | 3 | Seat | PTFE,RPTFE | 4 | Stem | SS316L | SS304 | SS304 | 5 | Cap | CF8M | CF8 | WCB | 6 | Bolt | A193 B8M | A193 B8 | A193 B7 | 7 | Body gasket | PTFE | 8 | Thrust washer | PTFE,RPTFE | 9 | V-ring packing | PTFE,RPTFE | 10 | Gland | SS304 | 11 | Belleville washer | SS304 | 12 | Nut | SS304 | 13 | Stop lock cap | SS304 | 14 | Washer | SS304 | 15 | Nut | SS304 | 16 | Handlever | SS304 | 17 | Stop bolt | SS304 | 18 | O ring | FPM | 19 | Anti-static device | SS304 |
Size | d | n | C | D | D1 | D2 | f | T | H | L | W | Flange | Stem | WT(kg) | DN | INCH | ISO5211 | F1 | d1 | F2 | d2 | K | h | M | 15 | 1/2" | 15 | 4 | 14 | 95 | 65 | 45 | 2 | 16 | 75 | 115 | 110 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 2.3 | 20 | 3/4" | 20 | 4 | 14 | 105 | 75 | 58 | 2 | 18 | 83 | 120 | 110 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 3 | 25 | 1" | 25 | 4 | 14 | 115 | 85 | 68 | 2 | 18 | 90 | 125 | 150 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 4 | 32 | 1 1/4" | 32 | 4 | 18 | 140 | 100 | 78 | 2 | 18 | 102 | 130 | 150 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 6 | 40 | 1 1/2" | 38 | 4 | 18 | 150 | 110 | 88 | 3 | 18 | 114 | 140 | 190 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 8 | 50 | 2" | 49 | 4 | 18 | 165 | 125 | 102 | 3 | 18 | 122 | 150 | 190 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 10 | 65 | 2 1/2" | 64 | 4 | 18 | 185 | 145 | 122 | 3 | 18 | 168 | 170 | 300 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 15 | 80 | 3" | 76 | 8 | 18 | 200 | 160 | 138 | 3 | 20 | 179 | 180 | 300 | F07+F10 | 70 | 4.5 | 102 | 5.5 | 17 | 18 | M22 | 21 | 100 | 4" | 100 | 8 | 18 | 220 | 180 | 158 | 3 | 20 | 197 | 190 | 300 | F07+F10 | 70 | 4.5 | 102 | 5.5 | 17 | 18 | M22 | 28 | 125 | 5" | 125 | 8 | 18 | 250 | 210 | 188 | 2 | 20 | / | 356 | / | F10+F12 | 102 | 11 | 125 | 13 | 22 | 22 | / | 32 | 150 | 6" | 150 | 8 | 22 | 285 | 240 | 212 | 2 | 20 | / | 394 | / | F12+F14 | 125 | 13 | 140 | 17 | 27 | 27 | / | 52 | 200 | 8" | 200 | 12 | 22 | 340 | 295 | 268 | 2 | 22 | / | 457 | / | F12+F14 | 125 | 13 | 140 | 17 | 26 | 36 | / | 75 |
Connection | Flanged ends according to EN1092-1 | Nominal diameter | 1/2"-4" | Pressure rating | PN40 for DN15-DN50, PN16 for DN65-DN100 | Face to face | DIN3202 F4 | Temperature range | -20°C to +200°C | Operation | Hand lever, pneumatic actuator, electric actuator |
Series B50 2pc flanged ball valve is full bore designed and suitable for shutoff of various medium without much dirt such as air, gas, water, oil and liquids. FEATURES • 2 piece compact design of body Full bore for better Kv/Cv • Investment casting with meticulous surface • Blow-out-proof stem • Both pure PTFE and 25% carbon fiber reinforced RPTFE seat available • Pressure relief hole in ball slot • ISO5211 direct mounting pad for easy automation • Anti-static devices for ball-stem-body • Fire safe design

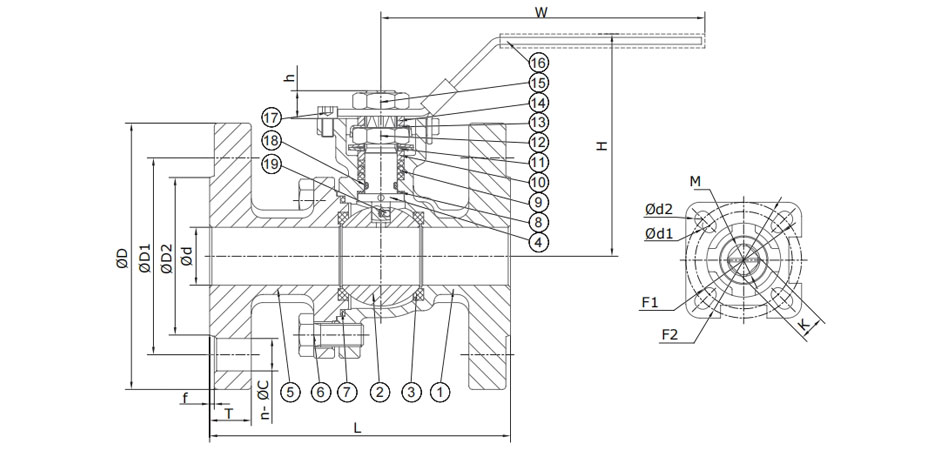

No. | Part name | Material | 1 | Body | CF8M | CF8 | WCB | 2 | Ball | SS316L | SS304 | SS304 | 3 | Seat | PTFE,RPTFE | 4 | Stem | SS316L | SS304 | SS304 | 5 | Cap | CF8M | CF8 | WCB | 6 | Bolt | A193 B8M | A193 B8 | A193 B7 | 7 | Body gasket | PTFE | 8 | Thrust washer | PTFE,RPTFE | 9 | V-ring packing | PTFE,RPTFE | 10 | Gland | SS304 | 11 | Belleville washer | SS304 | 12 | Nut | SS304 | 13 | Stop lock cap | SS304 | 14 | Washer | SS304 | 15 | Nut | SS304 | 16 | Handlever | SS304 | 17 | Stop bolt | SS304 | 18 | O ring | FPM | 19 | Anti-static device | SS304 |
