Limit Switch  ★★★
  • P61
    		•
    GENERAL INFORMATION TECHNICAL DATA PARTS LIST DIMENSIONS(mm)

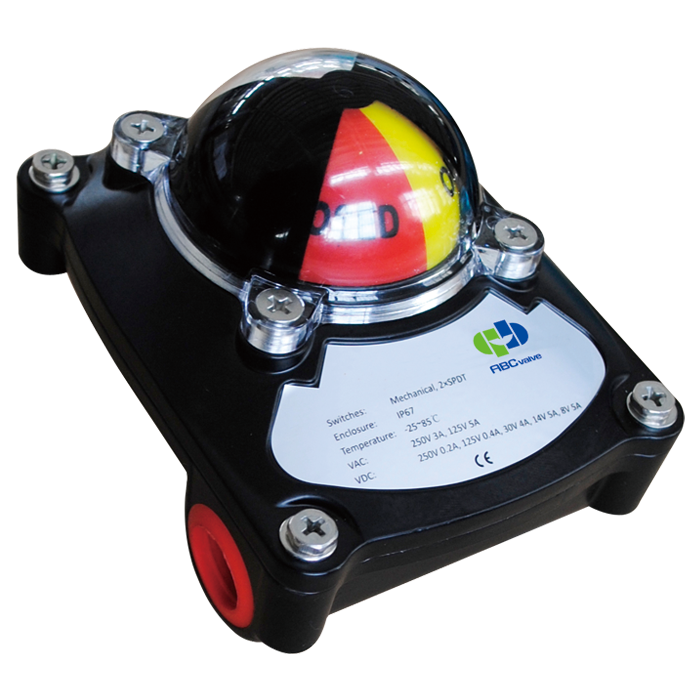

    Series P61 limit switch is mounted on pneumatic actuator to show the opened or closed position of valve and give out signal.

    FEATURES

    • Solid and compact design
    • High level weather proof IP67 with CE approval
    • Multi-point terminal strip, standard 8 points and enough strips for connection
    • Quick-set cam-Spring loaded splined cam, no need to adjust again after initial setting
    • Captive cover bolts-No worry to loose bolts while cover open
    • Easy mounting-NAMUR standard stainless steel shaft, ISO5211 bracket with stainless steel as standard
    • Visual position indicator, with non-visual indicator type available on request


    ItemStandardOption
    Weather proofIP67
    Temperature range-25℃～+85℃
    Cable entry2x1/2NPTPT1/2, PF1/2, M20 PG13.5
    Terminal strips89～24
    Position range0～90°0～180°
    Position indicatorOpen-Yellow; Close-Red
    SwitchesMechanical, proximity

    No.Part nameMaterial
    1Box coverAluminium Die Casting
    2Box bodyAluminium Die Casting
    3ShaftStainless Steel
    4Indicator coverPolycarbonate
    5IndicatorABS/Polycarbonate
    6Limit switchMachanical/Proximity/Magnet sensor
    7Terminal stripPolycarbonate, Tin Plated Brass, SS
    8CamPolycarbonate
    9Cover boltsSS
    10Earth LugSS
