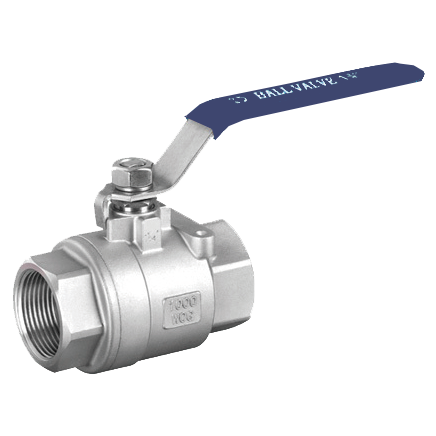

2PC Threaded Ball Valves  ★★★★
  • B20
  • Series B20 2PC threaded ball valve is full bore designed and suitable for shutoff of various medium without much dirt such as air, gas, water, oil and liquids.

    FEATURES

    • 2-PC compact design of body Full bore for better Kv/Cv
    • ;Investment stainless steel casting with meticulous surface
    • Blow-out-proof stem
    • Pure PTFE seat


    ConnectionThreaded BSPP, Alternative NPT, BSPT
    Nominal diameter1/4"-4"
    Pressure ratingPN63
    Temperature range-20°C to +200°C
    OperationHand lever with lockable device

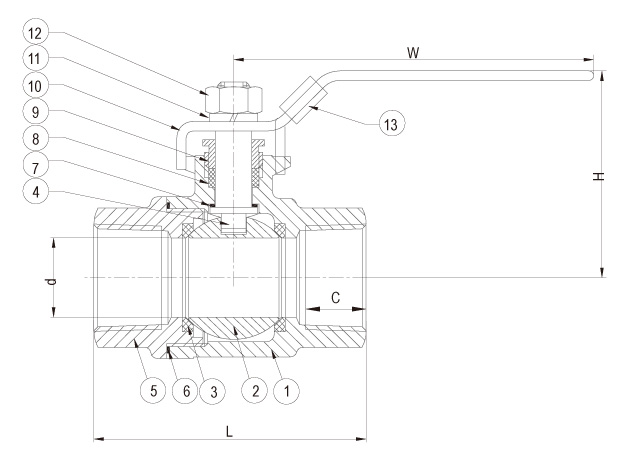

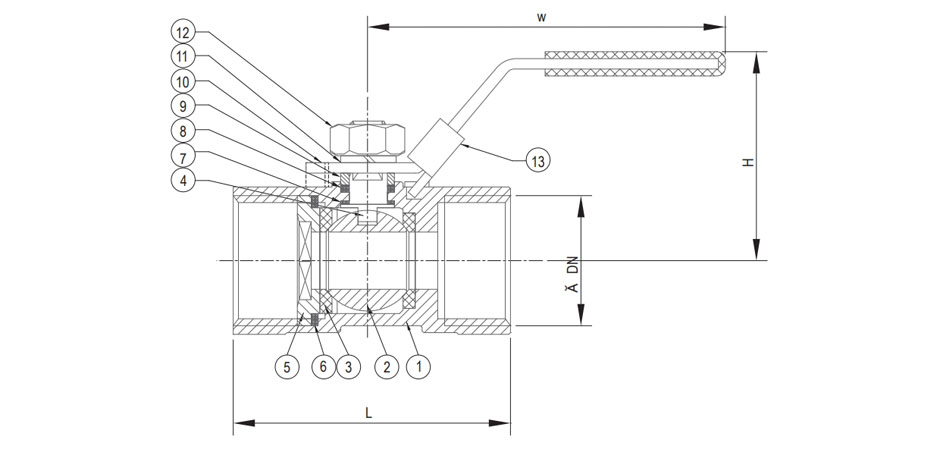

    No.Part nameMaterial
    1BodyCF8
    2BallSS304
    3SeatPTFE
    4StemSS304
    5CapCF8
    6Body gasketPTFE
    7Thrust washerPTFE
    8Stem packingPTFE
    9Gland nutSS304
    10Handle leverSS304
    11Nut washerSS304
    12NutSS304
    13Locking deviceSS304



    SIZE

    CdHLWWT(kg)
    DNINCH
    101/4"1010.551.5481000.3
    123/8"1010.551.5481000.3
    151/2"12.51457.5541000.3
    203/4"131964.5621200.6
    251"15.52468731200.8
    321 1/4"17.53179.5871501.3
    401 1/2"183890.5961702
    502"1848981081703
    652 1/2"24641221382506
    803"27.5761321642509
    1004"289816319330012
