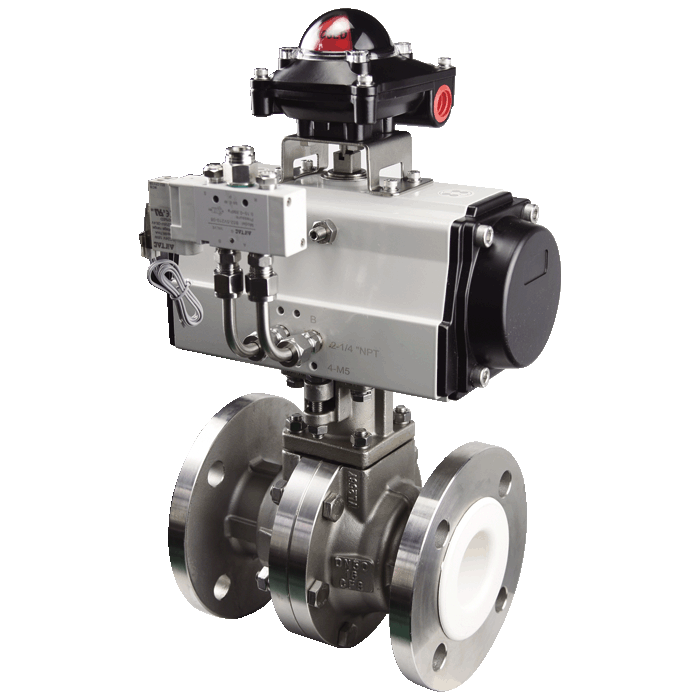

Teflon Lined Ball valve  ★★★★★
  • B55F
    		•
    GENERAL INFORMATION TECHNICAL DATA PARTS LIST DIMENSIONS(mm)

    Series B55F Teflon lined ball valve with its body and ball full encapsulated by PFA, FEP or PTFE is for top corrosion medium with high reliability and safety.

    FEATURES
    . Exchangeable PTFE seat rings.
    . Dovetail grooves machined into the body ensure locking of the lining to the body and reduce the effect of liner loading at the flanges.
    . Metal to metal body joints ensure lining not squeezed out by pressure or thermal cycling.
    . One piece Ball/Stem design for both regulating and shut off(B55F1), two piece Ball/Stem design for pressure up to 25bar(B55F2).
    . Self adjusting packing of V-rings by a permanent spring loading provides stem seal integrity while maintaining low turning torque.
    . Full port flow path is designed for minimum pressure drop.



    Design standard ANSI B16.34
    Connection Flanged according to various standards
    Nominal diameter 1/2"-8"
    Pressure rating PN16 for B55F1; PN16 and PN25 for B55F2

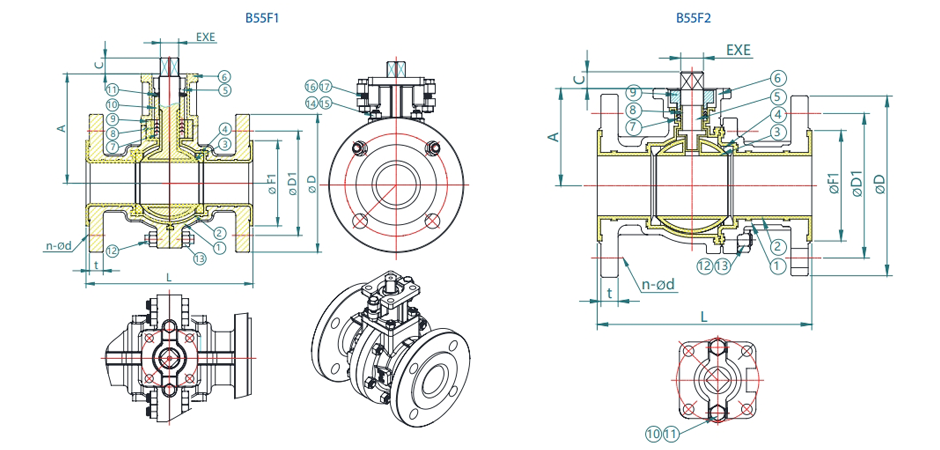

    Face to face See the drawing
    Temperature range -29°C to +190°C
    Pressure test API 598
    Operation Lever, Pneumatic actuator, Electric actuator



    B55F1 PARTS LIST AND MATERIAL SPECIFICATION B55F2 PARTS LIST AND MATERIAL SPECIFICATION
    No. Part name Material No. Part name Material
    1 Body ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M 1 Body ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M
    2 Lining FEP,PFA,PTFE 2 Lining FEP,PFA,PTFE
    3 Ball/stem WCB/SS304/SS316 full encapsulated by FEP/PFA/PTFE 3 Ball WCB/SS304/SS316 full encapsulated by FEP/PFA/PTFE
    4 Seat PTFE 4 Seat PTFE
    5 Packing gland ASTM A351 CF8 5 Stem SS304, SS316
    6 Bracket ASTM A351 CF8, ASTM A351 CF8M 6 Packing gland ASTM A351 CF8
    7 Chevron ring PTFE 7 Chevron ring PTFE
    8 Packing sleeve PTFE 8 Stem lining FEP,PFA,PTFE
    9 Packing bushing SS304, SS316 9 Gland ASTM 351 CF8, ASTM A351 CF8M
    10 Gland ring SS304, SS316 10 Gland bolt SS304
    11 Belleville washer SS301 11 Gland nut SS304
    12 Body Bolt SS304 12 Body Bolt SS304
    13 Body Nut SS304 13 Body Nut SS304
    14 Bracket bolt SS304
    15 Bracket nut SS304
    16 Gland bolt SS304
    17 Gland nut SS304


    B55F1 DIMENSIONS (mm)
    SIZE A C D D1 n-d E ISO5211 F1 L t WT(kg)
    DN INCH
    15 1/2" 98 17 95 65 4-14 14 F07 45 130 14 2
    20 3/4" 98 17 105 75 4-14 14 F07 55 140 16 3
    25 1" 103 17 115 85 4-14 14 F07 65 150 16 4
    32 1 1/4" 111 17 140 100 4-18 14 F07 75 165 16 6
    40 1 1/2" 126 19 150 110 4-18 17 F07 85 180 16 9
    50 2" 131 19 165 125 4-18 17 F07 96 200 16 12
    65 2 1/2" 164 23 185 145 8-18 22 F10 120 220 16 15
    80 3" 176 24 200 160 8-18 22 F10 135 250 18 25
    100 4" 185 24 220 180 8-18 22 F10 155 280 18 40
    125 5" 216 29 250 210 8-18 27 F10/F12 185 320 20 50
    150 6" 244 31 285 240 8-22 27 F12/F14 210 360 20 70

    B55F2 DIMENSIONS (mm)
    SIZE A C D D1 n-d E ISO5211 F1 L t WT(kg)
    DN INCH
    15 1/2" 60 11 95 65 4-14 11 F05 46 130 14 2
    20 3/4" 60 11 105 75 4-14 11 F05 56 130 16 3
    25 1" 60 11 115 85 4-14 11 F05 65 140 16 4
    32 1 1/4" 71 14 140 100 4-18 14 F07 76 165 18 6
    40 1 1/2" 76 14 150 110 4-18 14 F07 84 165 18 9
    50 2" 84 14 165 125 4-18 14 F07 99 203 20 12
    65 2 1/2" 107 18 185 145 8-18 17 F10 118 222 20 15
    80 3" 117 18 200 160 8-18 17 F10 132 241 20 25
    100 4" 144 23 220 180 8-18 22 F10 156 305 22 40
    125 5" 244 36 250 210 8-18 27 F14/F16 184 356 22 50
    150 6" 270 46 285 240 8-22 36 F14/F16 211 394 24 88
    200 8" 350 46 340 295 12-22 36 F16/F25 266 457 24 120
