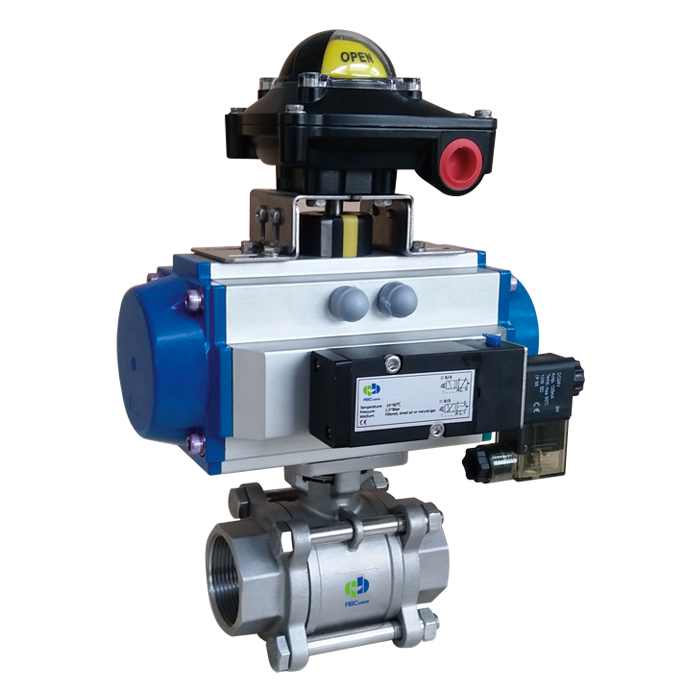

 Series B35 ISO top 3pc ball valve is full bore designed and suitable for shutoff of various medium without much dirt such as air, gas, water, oil and liquids. 3PC design makes the maintenance convenient without caps uninstalled. Both butt-weld ends and threaded ends popular for this valve.
FEATURES • 3 piece compact design for convenient field maintenance Full bore for better Kv/Cv
• Investment stainless steel casting with meticulous surface
• Blow-out-proof stem
• Both pure PTFE and 25% carbon fiber reinforced RPTFE seat available
• Pressure relief hole in ball slot
• ISO5211 direct mounting pad for easy automation
• Anti-static devices for ball-stem-body
| Connection | Threaded BSPP-ISO228/1, Butt weld ends-ISO1127 | | Nominal diameter | 1/2"-4" | | Pressure rating | PN63 for 1/2"-2", PN40 for 2 1/2"-4" | | Face to face | DIN3202 M3 | | Temperature range | -20°C to +200°C | | Operation | Hand lever, pneumatic actuator, electric actuator |

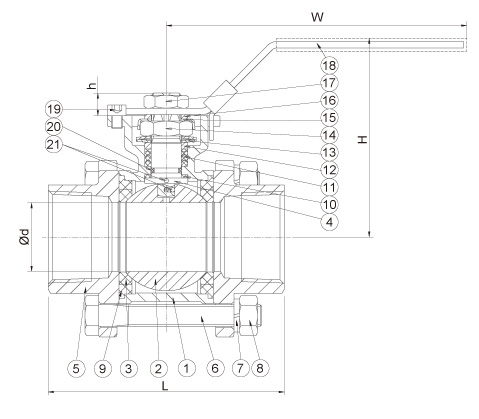

| No. | Part name | Material | | 1 | Body | CF8M | CF8 | WCB | | 2 | Ball | SS316L | SS304 | SS304 | | 3 | Seat | PTFE,RPTFE | | 4 | Stem | SS316L | SS304 | SS304 | | 5 | Cap | CF8M | CF8 | WCB | | 6 | Bolt | SS304 | | 7 | Washer | SS304 | | 8 | Nut | SS304 | | 9 | Body gasket | PTFE | | 10 | Thrust washer | PTFE,RPTFE | | 11 | V-ring packing | PTFE,RPTFE | | 12 | Gland | SS304 | | 13 | Belleville washer | SS304 | | 14 | Nut | SS304 | | 15 | Stop lock cap | SS304 | | 16 | Washer | SS304 | | 17 | Nut | SS304 | | 18 | Handlever | SS304 | | 19 | Stop bolt | SS304 | | 20 | O ring | FPM | | 21 | Anti-static device | SS304 |

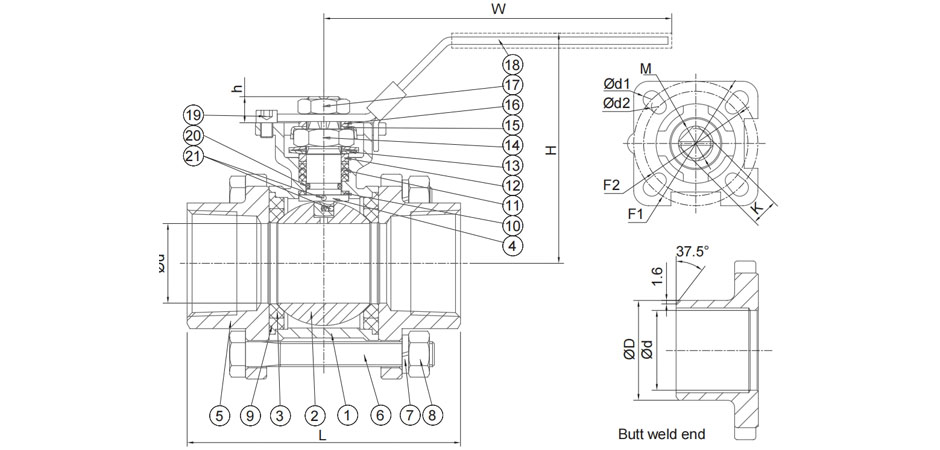

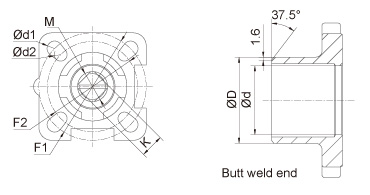

| SIZE | d | D | H | L | W | Mounting flange | Stem | WT(kg) | | DN | INCH | ISO5211 | F1 | d1 | F2 | d2 | K | h | M | | 15 | 1/2" | 15 | 21.6 | 77 | 75 | 120 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 0.6 | | 20 | 3/4" | 20 | 27.2 | 82 | 80 | 120 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 0.7 | | 25 | 1" | 25 | 34.0 | 90 | 90 | 140 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 1.1 | | 32 | 1 1/4" | 32 | 42.8 | 95 | 110 | 140 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 1.6 | | 40 | 1 1/2" | 38 | 48.6 | 104 | 120 | 190 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 2.5 | | 50 | 2" | 49 | 60.5 | 112 | 140 | 190 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 3.7 | | 65 | 2 1/2" | 64 | 76.3 | 120 | 185 | 230 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 7 | | 80 | 3" | 76 | 90.0 | 132 | 205 | 260 | F07+F10 | 70 | 4.5 | 102 | 5.5 | 17 | 18 | M22 | 10 | | 100 | 4" | 100 | 116.0 | 160 | 240 | 300 | F07+F10 | 70 | 4.5 | 102 | 5.5 | 17 | 18 | M22 | 19 |
| Connection | Threaded BSPP-ISO228/1, Butt weld ends-ISO1127 | | Nominal diameter | 1/2"-4" | | Pressure rating | PN63 for 1/2"-2", PN40 for 2 1/2"-4" | | Face to face | DIN3202 M3 | | Temperature range | -20°C to +200°C | | Operation | Hand lever, pneumatic actuator, electric actuator |
Series B35 ISO top 3pc ball valve is full bore designed and suitable for shutoff of various medium without much dirt such as air, gas, water, oil and liquids. 3PC design makes the maintenance convenient without caps uninstalled. Both butt-weld ends and threaded ends popular for this valve. FEATURES • 3 piece compact design for convenient field maintenance Full bore for better Kv/Cv
• Investment stainless steel casting with meticulous surface
• Blow-out-proof stem
• Both pure PTFE and 25% carbon fiber reinforced RPTFE seat available
• Pressure relief hole in ball slot
• ISO5211 direct mounting pad for easy automation
• Anti-static devices for ball-stem-body
| No. | Part name | Material | | 1 | Body | CF8M | CF8 | WCB | | 2 | Ball | SS316L | SS304 | SS304 | | 3 | Seat | PTFE,RPTFE | | 4 | Stem | SS316L | SS304 | SS304 | | 5 | Cap | CF8M | CF8 | WCB | | 6 | Bolt | SS304 | | 7 | Washer | SS304 | | 8 | Nut | SS304 | | 9 | Body gasket | PTFE | | 10 | Thrust washer | PTFE,RPTFE | | 11 | V-ring packing | PTFE,RPTFE | | 12 | Gland | SS304 | | 13 | Belleville washer | SS304 | | 14 | Nut | SS304 | | 15 | Stop lock cap | SS304 | | 16 | Washer | SS304 | | 17 | Nut | SS304 | | 18 | Handlever | SS304 | | 19 | Stop bolt | SS304 | | 20 | O ring | FPM | | 21 | Anti-static device | SS304 |
| SIZE | d | D | H | L | W | Mounting flange | Stem | WT(kg) | | DN | INCH | ISO5211 | F1 | d1 | F2 | d2 | K | h | M | | 15 | 1/2" | 15 | 21.6 | 77 | 75 | 120 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 0.6 | | 20 | 3/4" | 20 | 27.2 | 82 | 80 | 120 | F03+F04 | 36 | 3 | 42 | 3 | 9 | 10 | M12 | 0.7 | | 25 | 1" | 25 | 34.0 | 90 | 90 | 140 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 1.1 | | 32 | 1 1/4" | 32 | 42.8 | 95 | 110 | 140 | F04+F05 | 42 | 3 | 50 | 3.5 | 11 | 12 | M14 | 1.6 | | 40 | 1 1/2" | 38 | 48.6 | 104 | 120 | 190 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 2.5 | | 50 | 2" | 49 | 60.5 | 112 | 140 | 190 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 3.7 | | 65 | 2 1/2" | 64 | 76.3 | 120 | 185 | 230 | F05+F07 | 50 | 3.5 | 70 | 4.5 | 14 | 15 | M18 | 7 | | 80 | 3" | 76 | 90.0 | 132 | 205 | 260 | F07+F10 | 70 | 4.5 | 102 | 5.5 | 17 | 18 | M22 | 10 | | 100 | 4" | 100 | 116.0 | 160 | 240 | 300 | F07+F10 | 70 | 4.5 | 102 | 5.5 | 17 | 18 | M22 | 19 |
|
